Item No
A4101C

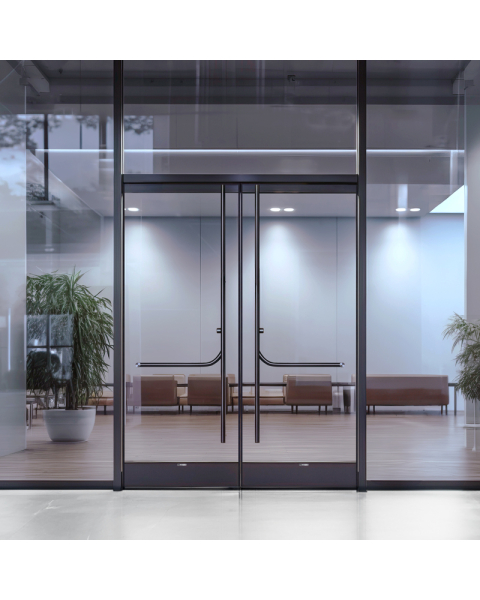

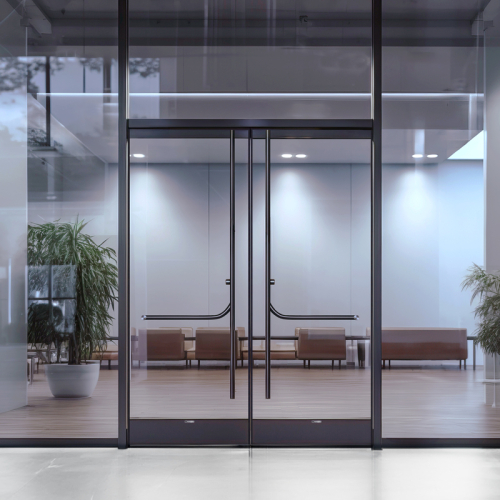

FHC Aspire™ Insulated Glass Entrance Door - 4" Top & 10" Bottom Rails - Diff Preps Top/Bottom
Unit Of Measure EA
Please log in to view the stock status.
Only %1 left
Features, Advantages, and Benefits
- Award Winning U-Factors as Low as 0.37
- Compatible with all High-Solar and Thermal Efficient Glass Types
- Designed for Use with Bird Safe Glass
- NFRC Rated and California Title 24 Compliant
- Supports 1” Insulating Glazing
- Elite Door That Looks As Great As it Performs
- Next Level Thermal Efficiency Provided by Thermally Broken Door Rails and Vertical Door Stiles. Utilizes Polyamide Strut Thermal Barriers Between the Inside and Outside Aluminum Extrusion Members
- Door Handle Hardware Connects Directly to the Glass, Producing a Heavy Glass Door Appearance. Enabled by Specialized Through Glass Hole Spacers That Create a Durable Seal Between the Insulating Glass Lites With a P.I.B. Primary Seal and Silicone Secondary Seal
- Very Narrow Width Vertical Door Stiles Complete the Heavy Glass Door Look. Stiles Utilize Our Patent Pending Clamping Mechanism and Unitizing Gaskets, for Fast Installations and Long-Term Durability
- Rugged Stainless-Steel Corner Joinery Will Maintain Door Integrity in High Traffic Applications
- Door Rails and Stiles are Available in Standard and Custom Clad Finishes
- Aspire Door Rails Feature Our Unitizing Gasket and Clamping Force Control Mechanism that Protects the Insulating Glass Edge Seal
- PAS (Pivot Alignment System) in Both Top and Bottom Door Rails Make Installation and Alignment Easy
- Door System Can be Configured to Center or Offset Pivot for Compatibility with Any Storefront Entrance System
- Integrated Air and Water Infiltration Management
Description
FHC Aspire™ Insulating Glass Entrance Systems together with the "VDS" Vertical Door Stile System (U.S. Patent Numbers 11,299,928 and 11,187,323) are both designed, engineered, and manufactured in the U.S.A. at the company’s Southern California facility. These new products bring next level industry standards to air, water infiltration management, and thermal performance meeting the nation’s ever evolving energy and building codes.
