Item No
AHD410

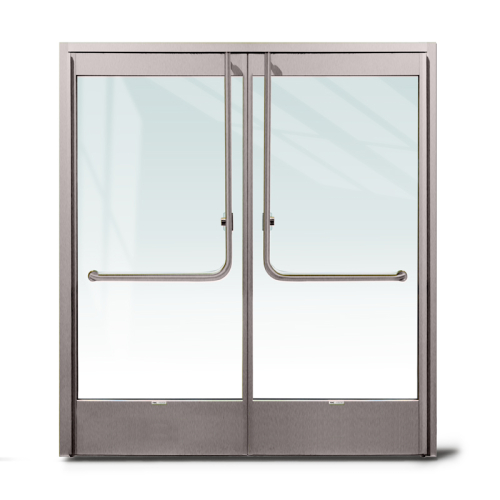

FHC Aspire HD™ Heavy-Duty Insulated Glass Entrance Door - 4" Top & 10" Bottom Rails - Thermally Broken Design
Unit Of Measure EA
Only %1 left
Features, Advantages, and Benefits
- Award Winning U-Factors as Low as 0.37
- Compatible with all High-Solar and Thermal Efficient Glass Types
- Designed for Use with Bird Safe Glass
- NFRC Rated and California Title 24 Compliant
- Supports 1” Insulating Glazing
- Continuous gear hinge (760 lb rated)
- Maximum Door Weight – 350 lb
- Maximum Door Size: 48” wide and 120” tall
- Elite Door That Looks As Great As it Performs
- Next Level Thermal Efficiency Provided by Thermally Broken Door Rails and Vertical Door Stiles. Utilizes Polyamide Strut Thermal Barriers Between the Inside and Outside Aluminum Extrusion Members
- Door Handle Hardware Connects Directly to the Glass, Producing a Heavy Glass Door Appearance. Enabled by Specialized Through Glass Hole Spacers That Create a Durable Seal Between the Insulating Glass Lites With a P.I.B. Primary Seal and Silicone Secondary Seal
- Very Narrow Width Vertical Door Stiles Complete the Heavy Glass Door Look. Stiles Utilize Our Patent Pending Clamping Mechanism and Unitizing Gaskets, for Fast Installations and Long-Term Durability
- Rugged Stainless-Steel Corner Joinery Will Maintain Door Integrity in High Traffic Applications
- Door Rails and Stiles are Available in Standard and Custom Clad Finishes
- Aspire Door Rails Feature Our Unitizing Gasket and Clamping Force Control Mechanism that Protects the Insulating Glass Edge Seal
- PAS (Pivot Alignment System) in Both Top and Bottom Door Rails Make Installation and Alignment Easy
- Door System Can be Configured to Center or Offset Pivot for Compatibility with Any Storefront Entrance System
- Integrated Air and Water Infiltration Management
Description
High class meets high performance. Discover the next generation of glass entrances with the FHC Aspire HD™ (Heavy-Duty) Glass Entrance System (U.S. Patent Numbers 11,299,928 and 11,187,323), a breakthrough in engineering that sets a new standard in terms of visual appeal, functionality, and performance. This innovative system enables architects and designers to create impressive, truly inspiring entrances up to 10 feet in height and 4 feet in width, paired with sleek 1-5/8" door stiles for a striking and elegant look that doesn’t compromise on performance. FHC Aspire HD™ features 1" insulating glass and a distinctive full perimeter seal with stops, delivering outstanding performance and design pressure capabilities in all weather conditions throughout the year. Significant design and engineering advancements have solidified FHC Aspire HD™’s position as an industry-leading glass entrance solution that is sure to please architects, owners and installers alike.
| Product Name | FHC Aspire HD™ Heavy-Duty Insulated Glass Entrance Door - 4" Top & 10" Bottom Rails - Thermally Broken Design |
|---|---|
| Item No | AHD410 |
| Glass Thickness | 1" |
| Bottom Rail | 10" |
| Maximum Door Weight | 400 lb |
| Maximum Door Width | 48" |
| Minimum Order Quantity | 1 |
| Top Rail | 4" |
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
