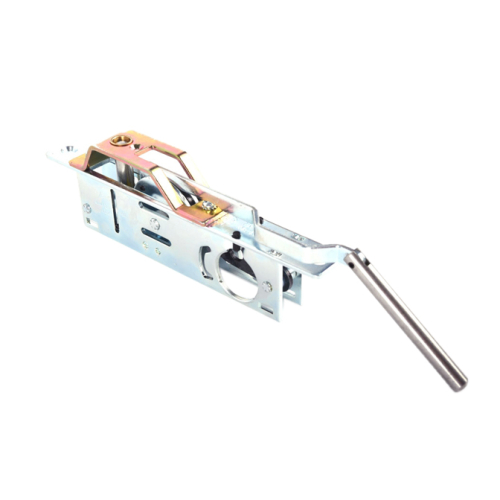

AR186102 Adams Rite Bottom Rail Deadlock Two-Point Vertical/Horizontal Bolts
Unit Of Measure EA
*Actual product colors may vary from the images shown.
Features, Advantages, & Benefits
Item NoAR186102
FHC Adams Rite Bottom Rail Deadlock Two-Point Vertical/Horizontal Bolts
Unit Of Measure EA
Features, Advantages, & Benefits
Two-Point Deadlock, with Vertical and Horizontal Bolts
For Full Glass Frameless Doors
360° Turn of Key or Thumbturn Throws or Retracts bolt. Key Can Be Removed Only when Bolts are in a Positively Locked or Unlocked Position
The MS1861-02 with Vertical and Horizontal Bolts Requires Placement of Cylinder Centerline 5-3/4" from Nose of Door
Case, Steel with Corrosion-Resistant Plate, Measures 1" x 6" x 1-13/16"
3/8" Diameter Stainless Steel Vertical Threshold Bolt has 13/16" Throw. Hardened Steel Horizontal Bolt Has 1-1/8" Throw
Strike, In Metal Installation, 7/16" Drilled Holes in Threshold are Required. Drilled Holes are also Required in Jamb or Opposite Door
Requires 2 Mortise Cylinders (not included)
603-Zinc Plated Steel Finish
| Product Name | FHC Adams Rite Bottom Rail Deadlock Two-Point Vertical/Horizontal Bolts |
|---|---|
| Item No | AR186102 |
| Weight | 0.000000 |
| Catalog Page | FAH23R p. 25 |
| Minimum Order Quantity | 1 |
