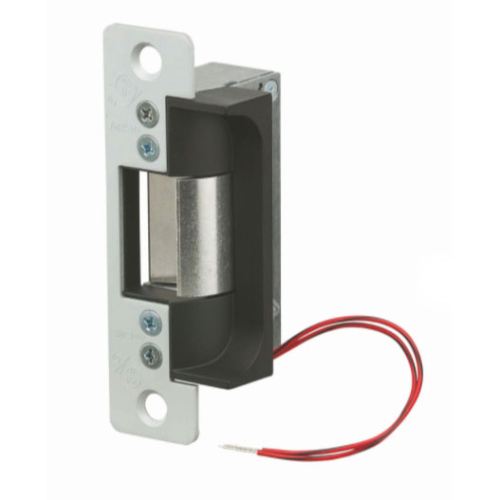

Overview

Case: 1" x 3-3/8" x 1-7/8" deep [25.4 mm x 85.7 mm x 47.6 mm].

Strike Opening: Bolt retaining keeper is stainless steel. Strike location must be centered on latchbolt.
7160: 3/4" x 1-7/16" x 5/8" deep [19.1 mm x 36.5 mm x 15.9 mm deep].

Strike Lip: Basic strike has lip of proper length for 1-3/4" [44.5 mm] thick door that closes flush with jamb edge. Where door thickness or jamb shape differs from this standard relationship, lip extension kits are available, specified by last dash number.

Latchbolt Projection: 3/4" [19.1 mm]

Faceplate: 1-1/4" x 4-7/8" [31.8 mm x 123.8 mm]. Available in a variety of architectural finishes.
7160: Flat with radius corners

Standard Package: Individually boxed with mounting screws.

7160 includes mounting clips, adhesive shims to accommodate jamb or stile extrusion thickness greater or less than nominal 1/8" [3.2 mm].

Shipping weight: 2 lbs [0.91 kg].

Electrical:

Voltage: Available in 12, 16, or 24 Volt AC and DC. DC continuous units are silent, AC intermittent units “buzz” on operation.

Current Draw:
0.33A at 12 VDC, 1.42A at 12 VAC
0.22A at 16 VDC, 0.63A at 16 VAC
0.17A at 24 VDC, 0.74A at 24 VAC

Fail Safe | Fail Secure: Field selectable at time of installation. However, AC intermittent solenoid must not be used continuously in either.
