Features, Advantages, & Benefits
Item NoCAM90

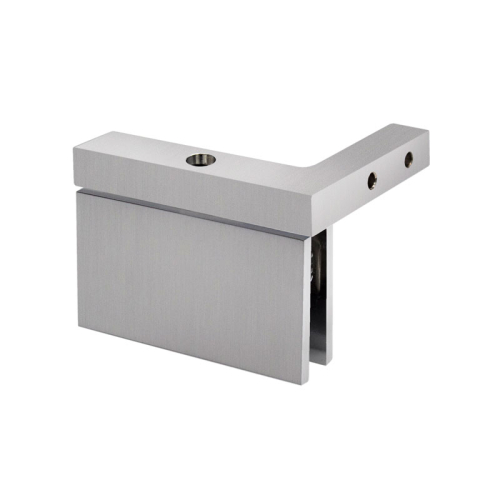

CAM90 Cambria Square Pivot Hinge L-Wall Mount 3/8" Glass
Unit Of Measure EA
*Actual product colors may vary from the images shown.
Features, Advantages, & Benefits
Item NoCAM90
FHC Cambria Square Pivot Hinge L-Wall Mount 3/8" Glass
Unit Of Measure EA
Only %1 left
Features, Advantages, & Benefits
NEXT-GEN Includes Factory-Bonded Recessed Gasket (Patent Pending)
Use with 3/8" Glass
Solid Brass Construction
Door Weight Rests on Bottom Fitting
For Residential Bath and Commercial Hotel Applications
Optional 5 Degrees Pivot Pin Allows Firmer, Positive Position Against Jamb/Seal
Non-Handed Design
Description
Glass Specifications
| MAXIMUM DOOR CAPACITY | 3/8" (10 mm) GLASS Approx. 5 lb./ft² |
|
|---|---|---|
| DOOR WEIGHT | DOOR WIDTH | |
| Using 2 Hinges | 100 LBS (66 kg) | 31" (787 mm) |
NOTE: Do Not Exceed either maximum weight or width when choosing proper quantity of hinges.
| Product Name | FHC Cambria Square Pivot Hinge L-Wall Mount 3/8" Glass |
|---|---|
| Item No | CAM90 |
| Compare To | CAR05RCH |
| Catalog Page | FSH24 p. 36 |
| Minimum Order Quantity | 1 |
| Warranty | 15 - Year Warranty |
