Item No
CLN135

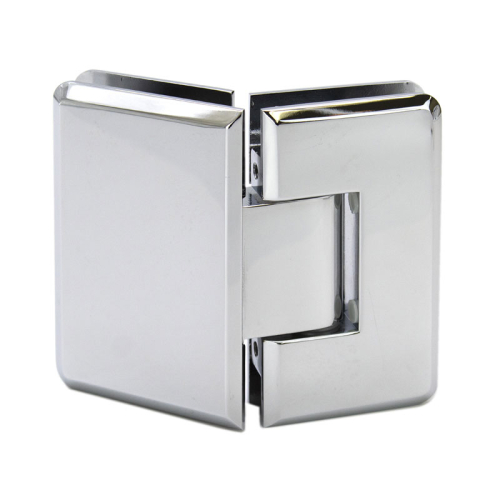

FHC Carolina Beveled Glass To Glass 135 Degree Hinge
Unit Of Measure EA
Only %1 left
Features, Advantages, and Benefits
- For 3/8" or 1/2" Tempered Glass
- Used in 135 Degree Glass to Glass Applications
- Beveled Edges and Corners
- Solid Brass Construction
- Easily Converts to 5 Degree Offset
Description
© Frameless Hardware Company, LLC. All rights reserved.
Glass Specifications
| MAXIMUM DOOR CAPACITY | 3/8" (10 mm) GLASS Approx. 5 lb./ft² |
1/2" (12 mm) GLASS Approx. 6.4 lb./ft² |
|---|---|---|
| DOOR WEIGHT | DOOR WIDTH | |
| Using 2 Hinges | 110 LBS (50 kg) | 36" (914 mm) |
| Using 3 Hinges | 140 LBS. (64 kg) | 36" (914 mm) |
| Product Name | FHC Carolina Beveled Glass To Glass 135 Degree Hinge |
|---|---|
| Item No | CLN135 |
| Glass Thickness | 3/8" or 1/2" |
| Compare To | C0L045CH |
| Catalog Page | FSH24 p. 28 |
| Degree | 135 Degree |
| Material | Solid Brass |
| Maximum Door Width | 36" (2 or 3 Hinges) |
| Minimum Order Quantity | 1 |
| Product Height | 3-15/16" |
| Product Width | 2-11/16" (Sidelite), 2-5/16"(Door) |
| Profile | Beveled |
| Warranty | 15 - Year Warranty |
| Weight Capacity | 2 Hinges/110 lb, 3 Hinges/140 lb |
