Features, Advantages, & Benefits
Item NoCLN90

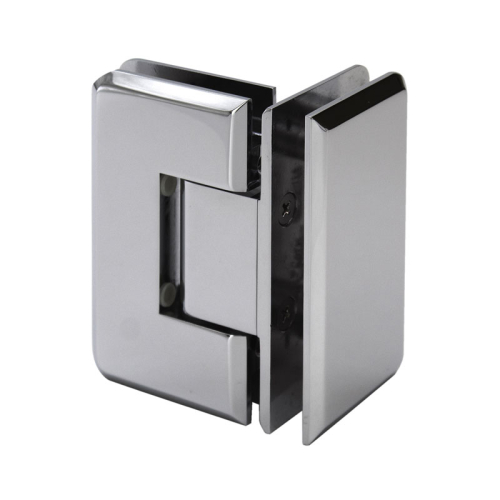

CLN90 Carolina Beveled Glass To Glass 90 Degree Hinge
Unit Of Measure EA
*Actual product colors may vary from the images shown.
Features, Advantages, & Benefits
Item NoCLN90
FHC Carolina Beveled Glass To Glass 90 Degree Hinge
Unit Of Measure EA
Only %1 left
Features, Advantages, & Benefits
For 3/8" or 1/2" Tempered Glass
Used in 90 Degree Glass to Glass Applications
Beveled Edges and Corners
Solid Brass Construction
Easily Converts to 5 Degree Offset
Description
Glass Specifications
| MAXIMUM DOOR CAPACITY | 3/8" (10 mm) GLASS Approx. 5 lb./ft² |
1/2" (12 mm) GLASS Approx. 6.4 lb./ft² |
|---|---|---|
| DOOR WEIGHT | DOOR WIDTH | |
| Using 2 Hinges | 110 LBS (50 kg) | 36" (914 mm) |
| Using 3 Hinges | 140 LBS. (64 kg) | 36" (914 mm) |
| Product Name | FHC Carolina Beveled Glass To Glass 90 Degree Hinge |
|---|---|
| Item No | CLN90 |
| Glass Thickness | 3/8" or 1/2" |
| Compare To | C0L092CH |
| Catalog Page | FSH24 p. 28 |
| Degree | 90 Degree |
| Material | Solid Brass |
| Maximum Door Width | 32" (2 or 3 Hinges) |
| Minimum Order Quantity | 1 |
| Product Height | 3-15/16" |
| Product Width | 2-5/16" (Sidelite), 2-5/16"(Door) |
| Profile | Beveled |
| Warranty | 15 - Year Warranty |
| Weight Capacity | 2 Hinges/100 lb, 3 Hinges/140 lb |
