Item No
CLNA4PN

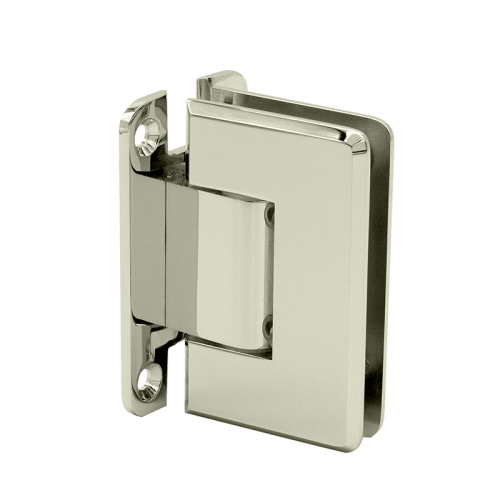

FHC Carolina Beveled Wall Mount Hinge Adjustable Full Back Plate - Polished Nickel
Unit Of Measure EA
Features, Advantages, and Benefits
- Adjustable Up to 90 Degrees
- Designed For 3/8"-1/2" (10 mm to 12 mm) Tempered Glass
- Can be Adjusted After Door is Installed
- Solid Brass Construction
- Use with Tempered Glass
| Product Name | FHC Carolina Beveled Wall Mount Hinge Adjustable Full Back Plate - Polished Nickel |
|---|---|
| Item No | CLNA4PN |
| Weight | 2.000000 |
| Select Your Color/Finish | Polished Nickel |
| Glass Thickness | 3/8" to 1/2" |
| Compare To | C0L337PN HMBGTWAFPPN |
| Catalog Page | FSH24 p. 29 |
| Construction | Solid Brass with Stainless Steel Plate |
| Ships Air | Ships Air |
| Glass Fabrication | See Template PDF for Glass Cutouts |
| Glass Specifications | Tempered Glass Only |
| Maximum Door Weight | 2 Hinges/110 lb, 3 Hinges/140 lb |
| Maximum Door Width | 36" |
| Minimum Order Quantity | 1 |
| Mounting Type | Wall Mount |
| Plate Type | Full Back Plate |
| Product Height | 3-15/16" |
| Product Width | 2-5/16" |
| Profile | Beveled |
| Ship Via | Ships UPS |
| Warnings | Not for use with Laminated Glass |
| Warranty | 15 - Year Warranty |
