Item No
CLNS2

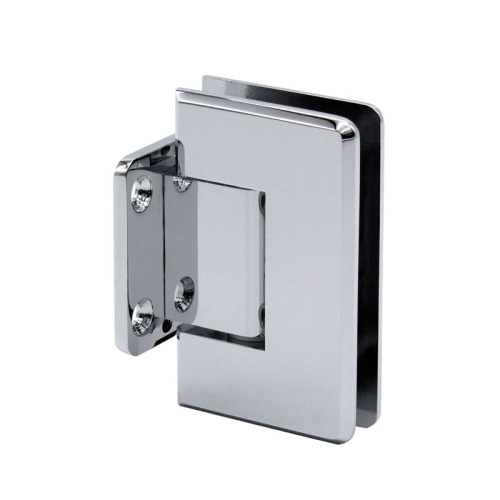

FHC Carolina Beveled Wall Mount Hinge Short Back Plate
Unit Of Measure EA
Case Quantity 20
Only %1 left
Features, Advantages, and Benefits
- For 3/8 - 1/2" (10 to 12 mm) Tempered Glass
- Includes Reversible 5 Degree Pivot Pin
- Short Back Plate Design
- Beveled, Radius Corner Design
- Solid Brass Material, with High Quality Plating
Description
| Product Name | FHC Carolina Beveled Wall Mount Hinge Short Back Plate |
|---|---|
| Item No | CLNS2 |
| Glass Thickness | 3/8" to 1/2" |
| Case Quantity | 20 |
| Catalog Page | FSH24 p. 28 |
| Construction | Solid Brass with Stainless Steel Plate |
| Ships Air | Ships Air |
| Glass Fabrication | See Template PDF for Glass Cutouts |
| Glass Specifications | Tempered Glass Only |
| Maximum Door Weight | 2 Hinges/110 lb, 3 Hinges/140 lb |
| Maximum Door Width | 36" (914 mm) |
| Minimum Order Quantity | 1 |
| Mounting Type | Wall Mount |
| Plate Type | Short Back Plate |
| Product Height | 3-15/16" |
| Product Width | 2-5/16" |
| Profile | Beveled |
| Ship Via | Ships UPS |
| Warnings | Not for use with Laminated Glass |
| Warranty | 3- Year Warranty |
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
