Item No
CSGG01BS

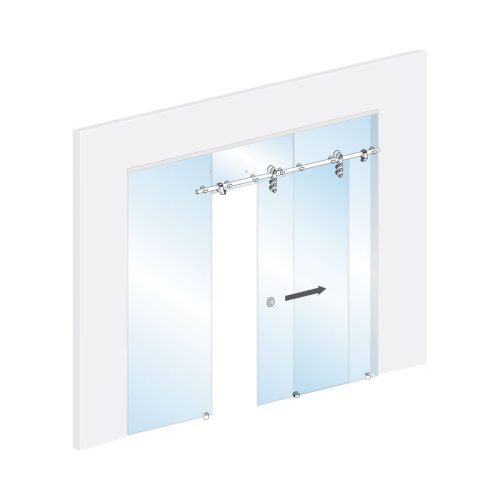

FHC Single Glass to Glass Mount Carmel Series Slider - Brushed Stainless
Unit Of Measure EA
Features, Advantages, and Benefits
- For Use With 3/8" and 1/2" Tempered Glass
- For Use With 9/16" Tempered Laminated Glass with SPG Interlayer
- Maximum Door Weight 225 lbs.
- 105" Single Panel Glass to Glass Mount Slider Kit
- Kit Includes All Hardware For Glass Mount Installation
- High Quality 316 Grade Stainless Steel
- Easily Surface Mounts to Face of Transom/Sidelite Glass
- Requires Glass Fabrication, See User Guide
- Anti-Lift Glass Panel Design
- Available in Multiple Finishes
| Product Name | FHC Single Glass to Glass Mount Carmel Series Slider - Brushed Stainless |
|---|---|
| Item No | CSGG01BS |
| Select Your Color/Finish | Brushed Stainless |
| Case Quantity | 0 |
| Compare To | LSGM6BS |
| Catalog Page | FAH23R p. 167 FSH24 p. 133 |
| Custom Length | Call |
| Glass Fabrication | Finger Pull requires 1-7/8" hole. Top Rollers require (4) 5/8" holes or (4) 1" Countersunk holes. For the Rod Supports; 5/8" Hole for Surface Mount or 1-1/4" Countersunk holes for Flush Mount Fittings |
| Minimum Order Quantity | 1 |
| Product Length | 105" w/caps |
| Ship Via | Common Carrier Only *Requires cutting for UPS* |
