Features, Advantages, & Benefits
Item NoD1686

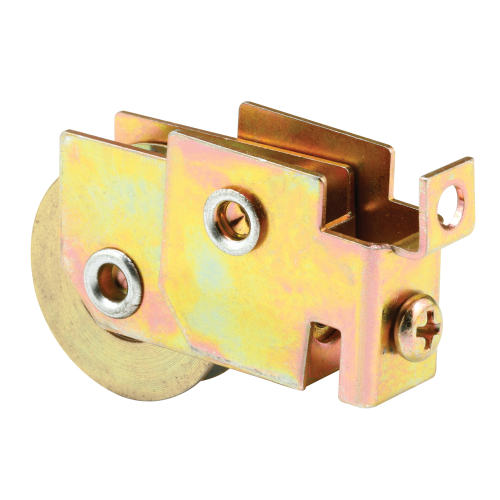

D1686 1-1/4" Steel Ball Bearing Sliding Door Roller Assembly
Unit Of Measure PK
Case Quantity 6
*Actual product colors may vary from the images shown.
Features, Advantages, & Benefits
Item NoD1686
1-1/4" Steel Ball Bearing Sliding Door Roller Assembly
Unit Of Measure PK
Case Quantity 6
Features, Advantages, & Benefits
- Used By a Variety of Metal Sliding Patio Door Manufacturers
- As the Corner Screw Passes Through the F-Tab It is Captured By the Side Stile and Bottom Rail as the Screw Draws the Two Sides Together
- 1-1/4 in. Diameter Ball Bearing Concave Roller
- Stamped Steel Housing and Roller
- F-Tab Housing
- Rear Adjusting Screw
- A Phillips Head Screwdriver is Required for Installation
Features, Advantages, & Benefits
Overview
This is a F-tab patio door roller assembly with a 1-1/4 in. concave steel ball bearing roller. When the corner screw passes through the F-tab it is captured by the side stile and bottom rail as the screw draws the two sides together. The housing is 9/16 in. wide with a flare width of 11/16 in., 1-1/8 in. tall and 1-1/4 in. long (not including the inner roller housing). It has a rear adjusting screw. Used by a variety of patio door manufacturers.
| Product Name | 1-1/4" Steel Ball Bearing Sliding Door Roller Assembly |
|---|---|
| Item No | D1686 |
| Weight | 0.000000 |
| Case Quantity | 6 |
| Compare To | D1686 |
| Minimum Order Quantity | 1 |
