Item No
GLEN03MB

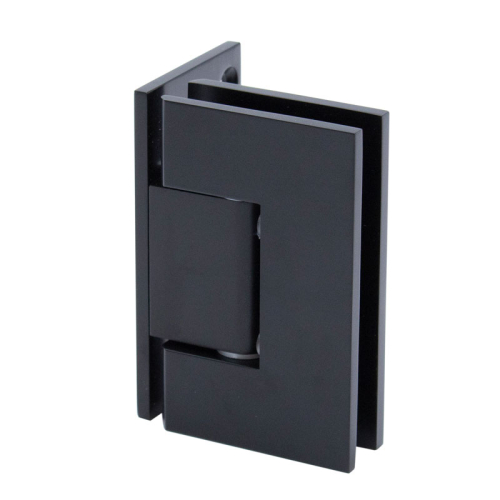

FHC Glendale Series Wall Mount Hinge - Offset Back Plate - Matte Black
Unit Of Measure EA
Case Quantity 20
Features, Advantages, and Benefits
- Square Profile Glass to Wall Hinge with Offset Back Plate
- Designed For 3/8"-1/2" (10 mm to 12 mm) Tempered Glass
- Many Popular Finishes to Select From
- Self-Centering within 15 Degrees of Closing Position
- Commonly used in Residential Bath and Commercial Hotel Applications
- Reversible 5 Deg Pivot Pin For Jobs Requiring a Positive Closing Position
- Replacement Screws PS102 and PS103 are Available as Needed
- Can be used with Hinge Limit Plates HLP25 and HLP40
Glass Specifications
| MAXIMUM DOOR CAPACITY | 3/8" (10 mm) GLASS Approx. 5 lb/ft² |
1/2" (12 mm) GLASS Approx. 6.4 lb/ft² |
|---|---|---|
| DOOR WEIGHT | DOOR WIDTH | |
| Using 2 Hinges | 80 LBS (36 kg) | 28" (711 mm) |
| Using 3 Hinges | 120 LBS. (54 kg) | 32" (813 mm) |
NOTE: Do Not Exceed either maximum weight or width when choosing proper quantity of hinges.
| Product Name | FHC Glendale Series Wall Mount Hinge - Offset Back Plate - Matte Black |
|---|---|
| Item No | GLEN03MB |
| Weight | 1.600000 |
| Select Your Color/Finish | Matte Black |
| Glass Thickness | 3/8" to 1/2" |
| Case Quantity | 20 |
| Compare To | GEN044MBL HGTW0PMB C500005BLK |
| Catalog Page | FSH24 p. 15 |
| Construction | Solid Brass with Stainless Steel Plate |
| Ships Air | Ships Air |
| Glass Fabrication | See Template PDF for Glass Cutouts |
| Glass Specifications | Tempered Glass Only |
| Maximum Door Weight | 2 Hinges/80 lb, 3 Hinges/120 lb |
| Maximum Door Width | 28" (2 Hinges), 32" (3 Hinges) |
| Minimum Order Quantity | 1 |
| Mounting Type | Wall Mounted |
| Plate Type | Offset Full Back Plate |
| Product Height | 3-1/2" |
| Product Weight | 2 lb |
| Product Width | 2-3/16" |
| Profile | Square |
| Ship Via | Ships UPS |
| Warnings | Not for use with Laminated Glass |
| Warranty | 15 - Year Warranty |
