Item No
GLEN135CH

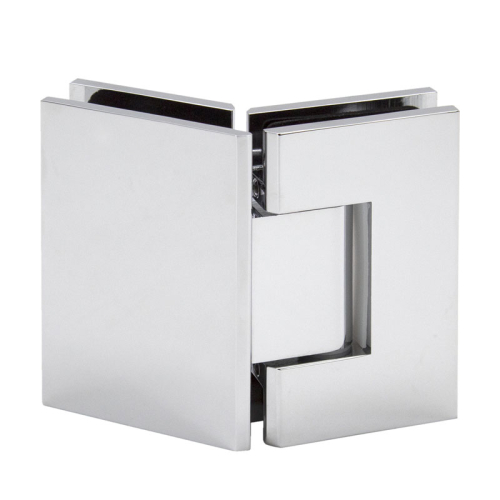

FHC Glendale Series 135 Degree Glass to Glass Hinge - Polished Chrome
Unit Of Measure EA
Features, Advantages, and Benefits
- Square Profile Glass to Glass 135 Degree Hinge
- Designed For 3/8"-1/2" (10 mm to 12 mm) Tempered Glass
- Many Popular Finishes to Select From
- Self-Centering within 15 Degrees of Closing Position
- Commonly used in Residential Bath and Commercial Hotel Applications
- Reversible 5 Deg Pivot Pin For Jobs Requiring a Positive Closing Position
Glass Specifications
| MAXIMUM DOOR CAPACITY | 3/8" (10 mm) GLASS Approx. 5 lb/ft² |
1/2" (12 mm) GLASS Approx. 6.4 lb/ft² |
|---|---|---|
| DOOR WEIGHT | DOOR WIDTH | |
| Using 2 Hinges | 80 LBS (36 kg) | 28" (711 mm) |
| Using 3 Hinges | 120 LBS. (54 kg) | 32" (813 mm) |
NOTE: Do Not Exceed either maximum weight or width when choosing proper quantity of hinges.
| Product Name | FHC Glendale Series 135 Degree Glass to Glass Hinge - Polished Chrome |
|---|---|
| Item No | GLEN135CH |
| Weight | 3.000000 |
| Select Your Color/Finish | Polished Chrome |
| Glass Thickness | 3/8" or 1/2" |
| Compare To | GEN045CH H135GTGC |
| Catalog Page | FSH24 p. 16 |
| Ships Air | Ships Air |
| Degree | 135 Degree |
| Glass Fabrication | Use FHC Template SD24 For Glass Fab Template |
| Material | Solid Brass |
| Maximum Door Width | 28" (2 Hinges), 32" (3 Hinges) |
| Minimum Order Quantity | 1 |
| Product Height | 3-1/2" |
| Product Weight | 2 lb |
| Product Width | 2-3/16" |
| Profile | Square |
| Ship Via | Ships UPS |
| Warnings | Not for use with laminated glass |
| Warranty | 15 - Year Warranty |
| Weight Capacity | 2 Hinges/80 lb, 3 Hinges/120 lb |
