Item No
GLEN580

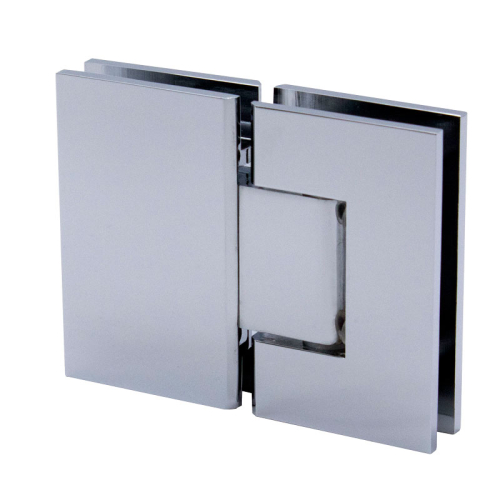

FHC Glendale Square 5 Degree Positive Close Glass To Glass 180 Degree Hinge
Unit Of MeasureEA
Only %1 left
Features, Advantages, and Benefits
- Square Profile Glass to Glass 180 Degree Hinge
- Designed For 3/8"-1/2" (10 mm to 12 mm) Tempered Glass
- Many Popular Finishes to Select From
- Self-Centering within 15 Degrees of Closing Position
- Commonly used in Residential Bath and Commercial Hotel Applications
- Reversible 5 Deg Pivot Pin For Jobs Requiring a Positive Closing Position
Description
Glass Specifications
| MAXIMUM DOOR CAPACITY | 3/8" (10 mm) GLASS Approx. 5 lb./ft² |
1/2" (12 mm) GLASS Approx. 6.4 lb./ft² |
|---|---|---|
| DOOR WEIGHT | DOOR WIDTH | |
| Using 2 Hinges | 80 LBS (36 kg) | 28" (711 mm) |
| Using 3 Hinges | 120 LBS. (54 kg) | 32" (813 mm) |
NOTE: Do Not Exceed either maximum weight or width when choosing proper quantity of hinges.
| Product Name | FHC Glendale Square 5 Degree Positive Close Glass To Glass 180 Degree Hinge |
|---|---|
| Item No | GLEN580 |
| Catalog Page | FSH24 p. 16 |
| Minimum Order Quantity | 1 |
