Features, Advantages, & Benefits
Item NoHVEN180

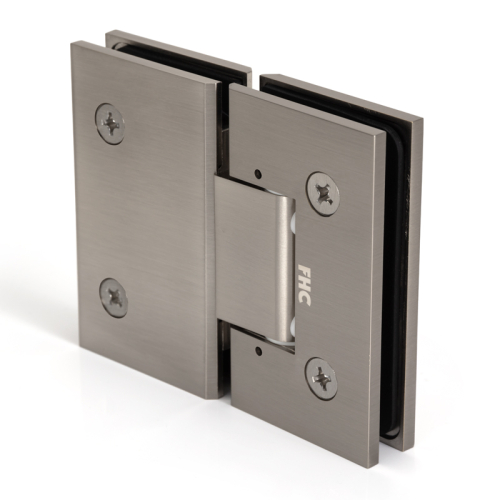

FHC Hydraulic Series Venice Square Glass-to-Glass 180 Degree Hinge
Unit Of Measure EA
Case Quantity 10
*Actual product colors may vary from the images shown.
Features, Advantages, & Benefits
Item NoHVEN180
FHC Hydraulic Series Venice Square Glass-to-Glass 180 Degree Hinge
Unit Of Measure EA
Case Quantity 10
Only %1 left
Features, Advantages, & Benefits
Integrated Recessed Gasket Groove Eliminates loose gaskets, slippage, and alignment issues while dramatically simplifying installation. U.S. Patent Granted
NEXT-GEN Factory-Bonded, Pre-Applied Gasket No more worrying about selecting the correct gasket thickness. U.S. Patent Granted
Textured EPDM Gasket Surface Specially formulated for exceptional glass grip and hold under load
Certified to Over 1 Million Cycles Unmatched holding power, simplicity, and longevity
Industry-Leading 15-Year Warranty
Hydraulic Series Provides a Smooth Closing Speed and an Adjustable Closing Position
Heavy-Duty Square Profile Glass-to-Glass 180 Degree Hinge
Designed for 3/8"-1/2" (10 mm to 12 mm) Tempered Glass
Self-Centering within 15 Degrees of Closing Position
Commonly Used in Residential Bath and Commercial Hotel Applications
Reversible 5 Degree Pivot Pin for Jobs Requiring a Positive Closing Position
Description
The Biggest Shower Hinge Innovation of the Last Decade is Here
The Hinge, Rethought
Engineered for Every Degree of Motion
Adjustable closed position fine-tuned via the interior cover plate with a 3mm Allen wrench.
FHC’s multi-patented new Hydraulic Series Shower Hinge brings true hydraulic closing to a standard hinge design. It delivers smooth, controlled door movement without the need for new installation methods, offering a premium upgrade in a familiar, installer-friendly format.
Factory-Bonded Recessed Gasket
U.S. Patent Granted Design
Integrates a specially formulated EPDM glass-grip gasket directly into the hinge body, preventing movement or misalignment.
Textured Gasket Surface
Slightly textured EPDM surface ensures a secure glass hold and exceptional performance under load.
Enhanced Load Engineering
Optimized structural integrity provides higher weight capacity, specifically engineered to support the demands of taller and wider shower door designs.
Standard Installation
Uses traditional cutouts with zero learning curve — no new tools or training required.
Easy Retrofitting
Upgrade existing enclosures without replacing the original glass.
Patented Bonded Gasket
Recessed EPDM gasket integrated directly into the body to eliminate slippage and misalignment.
15-Year Warranty
Backed by a robust, industry-leading long-term guarantee.
A New Benchmark For Performance and Reliability
Introducing the new FHC NEXT-GEN Frameless Shower Hinge. The FHC patented design features an integrated, factory-bonded gasket made of a specially formulated glass grip material, embedded in a recessed body. This design not only eliminates slippage, a common issue in conventional hardware, but also dramatically simplifies installation, saving valuable time for glaziers and installers. Tested to over 1 million cycles — to put it into perspective: if you opened your shower door 20 times a day, every day, this hinge would last over 130 years.
| Product Name | FHC Hydraulic Series Venice Square Glass-to-Glass 180 Degree Hinge |
|---|---|
| Item No | HVEN180 |
| Glass Thickness | 3/8"-1/2" |
| Case Quantity | 10 |
| Degree | 180 Degree |
| Minimum Order Quantity | 1 |
