Features, Advantages, & Benefits
Item NoJRPRES05

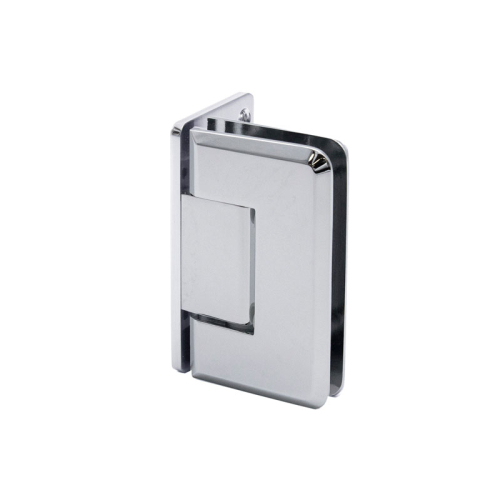

FHC Junior Preston 5 Degree Positive Wall Mount Hinge - Full Offset Back Plate
Unit Of Measure EA
*Actual product colors may vary from the images shown.
Features, Advantages, & Benefits
Item NoJRPRES05
FHC Junior Preston 5 Degree Positive Wall Mount Hinge - Full Offset Back Plate
Unit Of Measure EA
Only %1 left
Features, Advantages, & Benefits
Integrated Recessed Gasket Groove Eliminates loose gaskets, slippage, and alignment issues while dramatically simplifying installation. U.S. Patent Granted
NEXT-GEN Factory-Bonded, Pre-Applied Gasket No more worrying about selecting the correct gasket thickness. U.S. Patent Granted
Textured EPDM Gasket Surface Specially formulated for exceptional glass grip and hold under load
Certified to Over 1 Million Cycles Unmatched holding power, simplicity, and longevity
Industry-Leading 15-Year Warranty
For 1/4" - 5/16" (6 to 8 mm) Tempered Glass
Preset 5 Degree Pivot Pin
Offset Back Plate Design
Beveled, Radius Corner Design
Solid Brass Material, with High Quality Plating
Description
A New Benchmark For Performance and Reliability
Integrated Recessed Gasket Groove
Eliminates loose gaskets, slippage and alignment issues, and dramatically simplifies installation.
U.S. Patent Granted
Certified Product
Tested to over 1-million cycles, offering unmatched holding power, simplicity, and longevity.
Gasket Selection Simplified
No more worrying about selecting the wrong gasket thickness. NEXT-GEN hinge gaskets arrive pre-applied and factory-bonded.
Textured Gasket Surface
Specially formulated EPDM integrated gasket features a slight textured surface, ensuring exceptional glass grip and hold when loads are applied.
Warranty
Industry-leading 15-year warranty.
Introducing the new FHC NEXT-GEN Frameless Shower Hinge. The FHC patented design features an integrated, factory-bonded gasket made of a specially formulated glass grip material, embedded in a recessed body. This design not only eliminates slippage, a common issue in conventional hardware, but also dramatically simplifies installation, saving valuable time for glaziers and installers. Tested to over 1 million cycles — to put it into perspective: if you opened your shower door 20 times a day, every day, this hinge would last over 130 years.
| Product Name | FHC Junior Preston 5 Degree Positive Wall Mount Hinge - Full Offset Back Plate |
|---|---|
| Item No | JRPRES05 |
| Glass Thickness | 1/4" (6 mm) |
| Catalog Page | FSH24 p. 21 |
| Construction | Solid Brass |
| Ships Air | Ships Air |
| Glass Fabrication | See Template PDF for Glass Cutouts |
| Glass Specifications | Tempered Glass Only |
| Maximum Door Weight | 2 Hinges/55 lb, 3 Hinges/85 lb |
| Maximum Door Width | 32" (2 Hinges), 36" (3 Hinges) |
| Minimum Order Quantity | 1 |
| Mounting Type | Wall Mounted |
| Plate Type | Offset Full Back Plate |
| Product Height | 3" |
| Product Width | 1-13/16" |
| Profile | Beveled |
| Ship Via | Ships UPS |
| Warnings | Not for use with Laminated Glass |
| Warranty | 15 - Year Warranty |
