Features, Advantages, & Benefits
Item NoPAS180

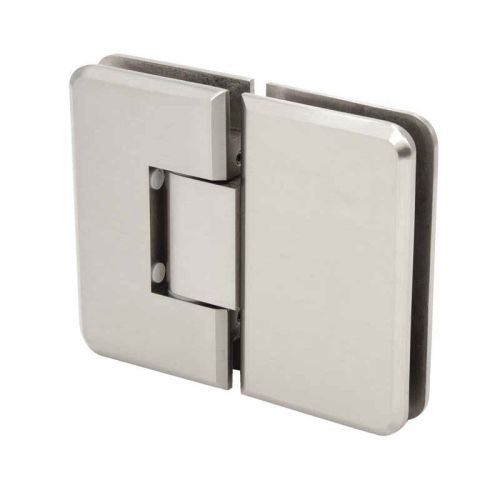

FHC Pasadena HD Beveled Glass-to-Glass 180 Degree Hinge
Unit Of Measure EA
*Actual product colors may vary from the images shown.
Features, Advantages, & Benefits
Item NoPAS180
FHC Pasadena HD Beveled Glass-to-Glass 180 Degree Hinge
Unit Of Measure EA
Only %1 left
Features, Advantages, & Benefits
Integrated Recessed Gasket Groove Eliminates loose gaskets, slippage, and alignment issues while dramatically simplifying installation. U.S. Patent Granted
NEXT-GEN Factory-Bonded, Pre-Applied Gasket No more worrying about selecting the correct gasket thickness. U.S. Patent Granted
Textured EPDM Gasket Surface Specially formulated for exceptional glass grip and hold under load
Certified to Over 1 Million Cycles Unmatched holding power, simplicity, and longevity
Industry-Leading 15-Year Warranty
Heavy Duty Beveled Profile Glass-to-Glass 180 Degree Hinge
Designed for 3/8"-1/2" (10 mm to 12 mm) Tempered Glass
Heavy Duty Design For Wider and Heavier Doors, Max 145 lbs.
Self-Centering within 15 Degrees of Closing Position
Commonly used in Residential Bath and Commercial Hotel Applications
Solid Brass Construction
Description
A New Benchmark For Performance and Reliability
Integrated Recessed Gasket Groove
Eliminates loose gaskets, slippage and alignment issues, and dramatically simplifies installation.
U.S. Patent Granted
Certified Product
Tested to over 1-million cycles, offering unmatched holding power, simplicity, and longevity.
Gasket Selection Simplified
No more worrying about selecting the wrong gasket thickness. NEXT-GEN hinge gaskets arrive pre-applied and factory-bonded.
Textured Gasket Surface
Specially formulated EPDM integrated gasket features a slight textured surface, ensuring exceptional glass grip and hold when loads are applied.
Warranty
Industry-leading 15-year warranty.
Introducing the new FHC NEXT-GEN Frameless Shower Hinge. The FHC patented design features an integrated, factory-bonded gasket made of a specially formulated glass grip material, embedded in a recessed body. This design not only eliminates slippage, a common issue in conventional hardware, but also dramatically simplifies installation, saving valuable time for glaziers and installers. Tested to over 1 million cycles — to put it into perspective: if you opened your shower door 20 times a day, every day, this hinge would last over 130 years.
Glass Specifications
| MAXIMUM DOOR CAPACITY | 3/8" (10 mm) GLASS Approx. 5 lb/ft² |
1/2" (12 mm) GLASS Approx. 6.4 lb/ft² |
|---|---|---|
| DOOR WEIGHT | DOOR WIDTH | |
| Using 2 Hinges | 145 lbs. (50 kg) | 40" (914 mm) |
NOTE: Do Not Exceed either maximum weight or width when choosing proper quantity of hinges.
| Product Name | FHC Pasadena HD Beveled Glass-to-Glass 180 Degree Hinge |
|---|---|
| Item No | PAS180 |
| Glass Thickness | 3/8" or 1/2" |
| Compare To | PLY180BN |
| Catalog Page | FSH24 p. 33 |
| Degree | 180 Degree |
| Material | Solid Brass |
| Maximum Door Width | 40" (2 Hinges) |
| Minimum Order Quantity | 1 |
| Product Height | 4-3/8" |
| Product Width | 2-5/8" (Sidelite), 2-5/8"(Door) |
| Profile | Beveled |
| Warranty | 15 - Year Warranty |
| Weight Capacity | 2 Hinges/145 lb |
