Features, Advantages, & Benefits
Item NoPRES06

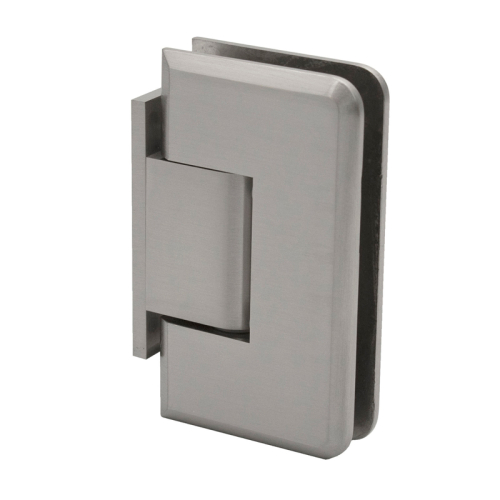

PRES06 Preston Square Wall Mount Offset Short Back Plate Hinge
Unit Of Measure EA
*Actual product colors may vary from the images shown.
Features, Advantages, & Benefits
Item NoPRES06
FHC Preston Beveled Wall Mount Hinge - Offset Short Back Plate
Unit Of Measure EA
Only %1 left
Features, Advantages, & Benefits
NEXT-GEN Includes Factory-Bonded Recessed Gasket (Patent Pending)
Offset Short Back Plate Allows for More Field Adjustment
Allows for "Tighter" Glass Gap at Hinge Side for Fast Hinge Installation
Designed for 3/8" - 1/2" (10 mm to 12 mm Tempered Glass)
Self-Centering Within 15 Degrees Of Closing Position
Commonly used in Residential Bath and Commercial Hotel Applications
Reversible 5 Deg Pivot Pin for Jobs Requiring A Positive Closing Position
Includes (4) Standard Size Phillips Head Mounting Screws
Description
| Product Name | FHC Preston Beveled Wall Mount Hinge - Offset Short Back Plate |
|---|---|
| Item No | PRES06 |
| Glass Thickness | 3/8" or 1/2" (10 or 12 mm) |
| Construction | Solid Brass |
| Ships Air | Ships Air |
| Glass Fabrication | See Template PDF for Glass Cutouts |
| Glass Specifications | Tempered Glass Only |
| Maximum Door Weight | 2 Hinges/80 lb, 3 Hinges/120 lb |
| Maximum Door Width | 28" (2 Hinges), 32" (3 Hinges) |
| Minimum Order Quantity | 1 |
| Mounting Type | Wall Mounted |
| Plate Type | Offset Short Back Plate |
| Product Height | 3" |
| Product Width | 2-3/16" |
| Profile | Beveled |
| Ship Via | Ships UPS |
| Warnings | Not for use with Laminated Glass |
| Warranty | 15 - Year Warranty |
