Item No
PRES535

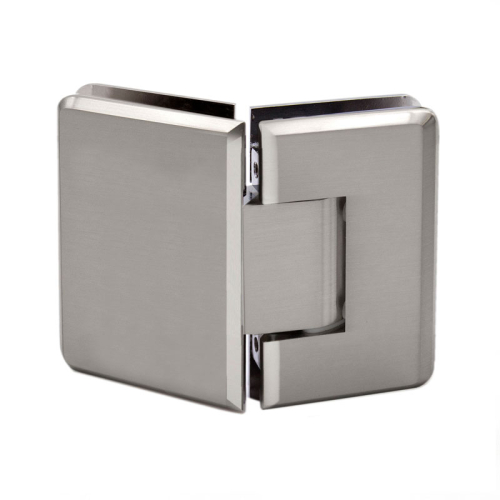

FHC Preston Beveled 5 Degree Positive Close Glass To Glass 135 Degree Hinge

Unit Of Measure EA
Only %1 left

Existing Customers Can Sign in to See Pricing and Place Orders
New to FHC? Request an Account
For Non-Related Industries Dealer Referral

Features, Advantages, and Benefits

  • For 3/8" to 1/2" Tempered Glass
  • Beveled Edges and Corners
  • Easily Converts to 5 Degree Offset
  • Used in 135 Degree Glass to Glass Applications
  • Solid Brass Construction
Request a Quote
Description

Glass Specifications

MAXIMUM DOOR CAPACITY 3/8" (10 mm) GLASS
Approx. 5 lb./ft²
1/2" (12 mm) GLASS
Approx. 6.4 lb./ft²
DOOR WEIGHT DOOR WIDTH
Using 2 Hinges 80 LBS (36 kg) 28" (711 mm)
Using 3 Hinges 120 LBS. (54 kg) 32" (813 mm)
More Information
Product NameFHC Preston Beveled 5 Degree Positive Close Glass To Glass 135 Degree Hinge
Item NoPRES535
Glass Thickness3/8" or 1/2"
Catalog PageFSH24 p. 20
Degree 135 Degree
MaterialSolid Brass
Maximum Door Width28" (2 Hinges), 32" (3 Hinges)
Minimum Order Quantity1
Product Height3-1/2"
Product Width2-9/16" (Sidelite), 2-3/16" (Door)
ProfileBeveled
Warranty15 - Year Warranty
Weight Capacity2 Hinges/80 lb, 3 Hinges/120 lb
