Features, Advantages, & Benefits
Item NoPRESAS2

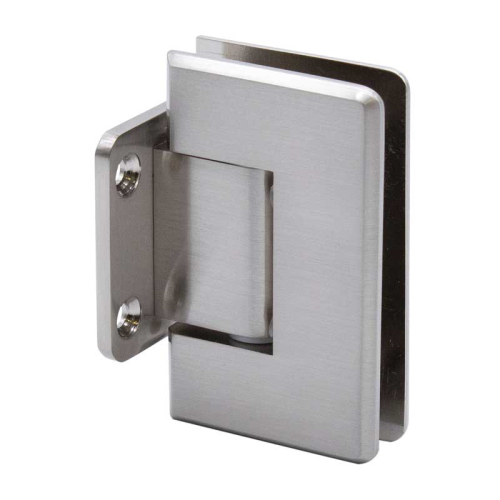

PRESAS2 Preston Adjustable Beveled Wall Mount Hinge Short Back Plate
Unit Of Measure EA
*Actual product colors may vary from the images shown.
Features, Advantages, & Benefits
Item NoPRESAS2
FHC Preston Adjustable Beveled Wall Mount Hinge - Short Back Plate
Unit Of Measure EA
Only %1 left
Features, Advantages, & Benefits
NEXT-GEN Includes Factory-Bonded Recessed Gasket (Patent Pending)
For 3/8 - 1/2" (10 to 12 mm) Tempered Glass
Adjustable up to 90 Degrees while the Door is Installed
Short Back Plate Design
Beveled, Radius Corner Design
Solid Brass Material, with High Quality Plating
Description
| Product Name | FHC Preston Adjustable Beveled Wall Mount Hinge - Short Back Plate |
|---|---|
| Item No | PRESAS2 |
| Glass Thickness | 3/8" or 1/2" (10 or 12 mm) |
| Catalog Page | FSH24 p. 20 |
| Construction | Solid Brass |
| Ships Air | Ships Air |
| Glass Fabrication | See Template PDF for Glass Cutouts |
| Glass Specifications | Tempered Glass Only |
| Maximum Door Weight | 2 Hinges/80 lb, 3 Hinges/120 lb |
| Maximum Door Width | 28" (2 Hinges), 32" (3 Hinges) |
| Minimum Order Quantity | 1 |
| Mounting Type | Wall Mounted |
| Plate Type | Short Back Plate |
| Product Height | 3-1/2" |
| Product Width | 2-1/8" |
| Profile | Beveled |
| Ship Via | Ships UPS |
| Warnings | Not for use with Laminated Glass |
| Warranty | 15 - Year Warranty |
