Item No
SB12C10

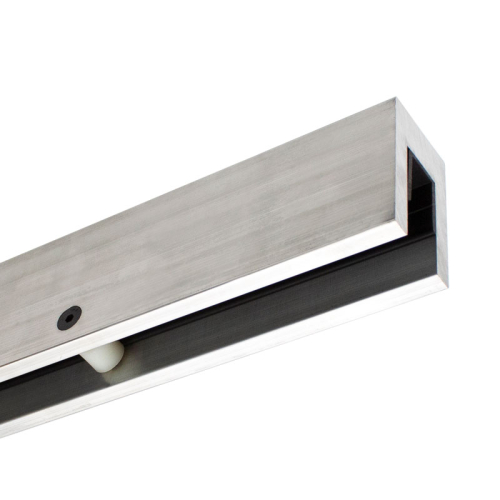

FHC 120" Long Aluminum Smoke Baffle - 1/2" and 9/16" Glass
Unit Of Measure EA
Features, Advantages, and Benefits
- Used to Create Unobtrusive Smoke Barriers
- Helps Confine Smoke to a Specific Area
- Required to Meet Building Codes in Some Regions
- Used with 1/2" and 9/16" Tempered Glass
- Cladding Sold Separately and End Caps
- 120" Long Stock Lengths
- Requires 3/4" Dia. Holes in Glass For Pinning, 12" on Center
- FHC Smoke Baffle Includes Pinning Bolts, Nylon Grommets, Roll-In Gaskets and a Rigid Vinyl Glass Protective Insert
Overview
The FHC 120" Aluminum Smoke Baffle is engineered to create unobtrusive smoke curtains/barriers for large offices and retail establishments. They help control, and are essential in containing smoke movement in the event of a fire allowing the occupants time to exit the building.. Many regions will require smoke baffles as part of the building code for office or commercial areas. FHC offers stock and custom options for your Smoke Baffle System in five standard Architectural Finishes. Use with 1/2" Tempered Glass.
Shipping and Ordering
Case quantity orders ship common carriers (six per case). Orders for cladding will only ship in quantities of six, and are otherwise only eligible for will call pick-up.
WARNING: Cancer and Reproductive Harm. Learn More P65Warnings.ca.gov
| Product Name | FHC 120" Long Aluminum Smoke Baffle - 1/2" and 9/16" Glass |
|---|---|
| Item No | SB12C10 |
| Compare To | B5B10 |
| Catalog Page | FAH23R p. 33 FGR24R p. 30 |
| Minimum Order Quantity | 1 |
