Item No
T5LM20D

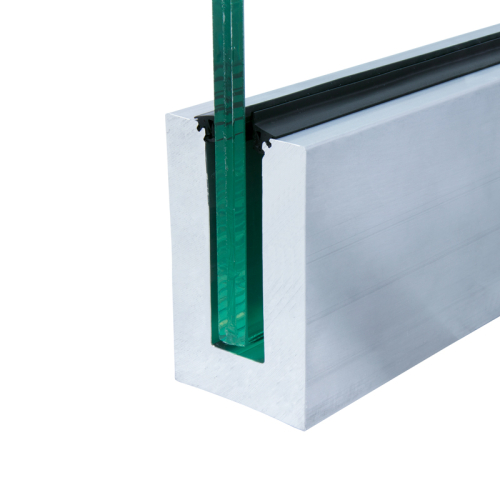

FHC Traditional Series Low Profile 2-1/4" x 3-1/2" Base Shoe Pre-Drilled 12" C.T.C. - 240" Length
Unit Of MeasureEA
Case Quantity16
Features, Advantages, and Benefits
- US Patent No. 11,686,102 B2
- FHC's Wet Glazed Aluminum Base Shoe
- Compatible With 1/2" Monolithic and 9/16" Laminated Tempered Glass Applications
- 10' Stock Lengths Pre Drilled 12" on Center
- Designed for Heavy Glass Railing and Windscreen Applications
- 6063-T5 Aluminum Alloy
- FHC's Innovative Item No."One Seal" "1SGM" Series Gasket Makes Installation Easy. Installers Can Pre-Load Gasket Before Setting Glass and Use the Same Gasket on the Inside to Finish the Installation
When Installed in Accordance with ICC-ESR4814, the Achieve Frameless Glass Railing System is compliant with:
- 2021 and 2018 International Building Code® (IBC)
- 2021 and 2018 Residential Building Code® (IBC)
- 2020 City of Los Angeles Building Code® (LABC)
- 2020 City of Los Angeles Residential Code® (LARC)
- 2019 California Building Code® (CBC)
- 2019 California Residential Code® (CRC)
| Product Name | FHC Traditional Series Low Profile 2-1/4" x 3-1/2" Base Shoe Pre-Drilled 12" C.T.C. - 240" Length |
|---|---|
| Item No | T5LM20D |
| Weight | 123.000000 |
| Case Quantity | 16 |
| Compare To | B5L20D A420088AEY20CB |
| Select Your Length | 240" |
| All Options | Bottom Drilled |
| Catalog Page | FGR24R p. -7 |
| Custom Length | CALL |
| Glass Fabrication | NONE |
| Limitations | Check Substrates |
| Minimum Order Quantity | 1 |
| Product Height | 3-1/2" |
| Product Length | 240" |
| Product Warning | *Always wear the appropriate safety gear to protect yourself. Failure to do so may cause serious operator injury. *Images shown are close representations of the product. Colors might vary depending on your computer's video display capabilities. |
| Product Width | 2-1/4" |
| Ship Via | COMMON CARRIER TRUCK OR CUT DOWN FOR UPS SHIPPING |
| Warnings | Prop 65 WARNING Cancer and/or Reproductive Harm - For more information visit ( www.p65Warnings.ca.gov ) |
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
