Features, Advantages, & Benefits
Item NoVENA4BNM

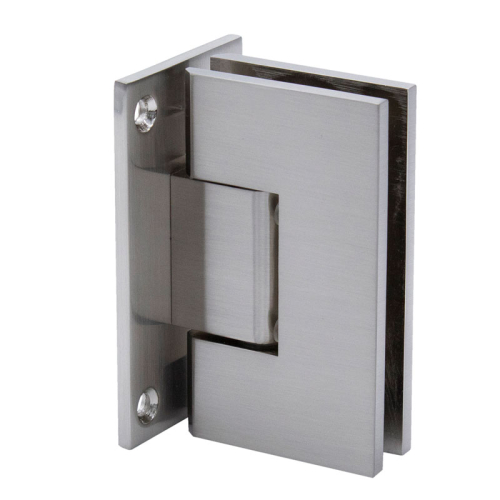

FHC Venice Adjustable Square Wall Mount Hinge Full Back Plate - Brushed Nickel
Unit Of Measure EA
*Actual product colors may vary from the images shown.
Features, Advantages, & Benefits
Item NoVENA4BNM
FHC Venice Adjustable Square Wall Mount Hinge Full Back Plate - Brushed Nickel
Unit Of Measure EA
Features, Advantages, & Benefits
For 3/8" to 1/2" Tempered Glass
Industry Standard Square Body Profile 3-15/16" Tall
Heavy Duty Designed for Heavier and Wider Doors
Self-Centering Within 15 Degrees of Closing Position
For Use in Residential Bath and Commercial Hotel Applications
Reversible 5 Degree Pivot Pin that Doesn't Require Special Tools
High Quality Solid Brass Construction with State-of-the-Art Plating Process
Features, Advantages, & Benefits
Glass Specifications
MAXIMUM DOOR CAPACITY
3/8" (10 mm) GLASS Approx. 5 lb/ft²
1/2" (12 mm) GLASS Approx. 6.4 lb/ft²
DOOR WEIGHT
DOOR WIDTH
Using 2 Hinges
110 LBS (50 kg)
36" (914 mm)
Using 3 Hinges
140 LBS. (64 kg)
36" (914 mm)
NOTE: Do Not Exceed either maximum weight or width when choosing proper quantity of hinges.
| Product Name | FHC Venice Adjustable Square Wall Mount Hinge Full Back Plate - Brushed Nickel |
|---|---|
| Item No | VENA4BNM |
| Weight | 2.000000 |
| Select Your Color/Finish | Brushed Nickel |
| Compare To | C501011BRN |
| Minimum Order Quantity | 1 |
