Item No
VENA4MB

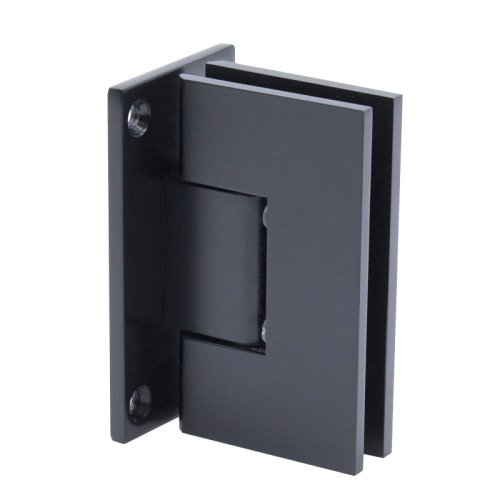

FHC Venice Adjustable Square Wall Mount Hinge Full Back Plate - Matte Black
Unit Of Measure EA
Case Quantity 20
Features, Advantages, and Benefits
- For 3/8" to 1/2" Tempered Glass
- Industry Standard Square Body Profile 3-15/16" Tall
- Heavy Duty Designed for Heavier and Wider Doors
- Self-Centering Within 15 Degrees of Closing Position
- For Use in Residential Bath and Commercial Hotel Applications
- Reversible 5 Degree Pivot Pin that Doesn't Require Special Tools
- High Quality Solid Brass Construction with State-of-the-Art Plating Process
- Replacement Screws PS102 and PS103 are Available as Needed
- Can be used with Hinge Limit Plates HLP25 and HLP40
Glass Specifications
| MAXIMUM DOOR CAPACITY | 3/8" (10 mm) GLASS Approx. 5 lb/ft² |
1/2" (12 mm) GLASS Approx. 6.4 lb/ft² |
|---|---|---|
| DOOR WEIGHT | DOOR WIDTH | |
| Using 2 Hinges | 110 LBS (50 kg) | 36" (914 mm) |
| Using 3 Hinges | 140 LBS. (64 kg) | 36" (914 mm) |
| Product Name | FHC Venice Adjustable Square Wall Mount Hinge Full Back Plate - Matte Black |
|---|---|
| Item No | VENA4MB |
| Weight | 1.600000 |
| Select Your Color/Finish | Matte Black |
| Glass Thickness | 3/8" to 1/2" (10 mm to 12 mm) |
| Case Quantity | 20 |
| Compare To | V1E337MBL HMGTWAFPMB C501011BLK |
| Catalog Page | FSH24 p. 25 |
| Construction | Solid Brass with Stainless Steel Plate |
| Ships Air | Ships Air |
| Glass Fabrication | See Template PDF for Glass Cutouts |
| Glass Specifications | Tempered Glass Only |
| Maximum Door Weight | 2 Hinges/110 lb, 3 Hinges/140 lb |
| Maximum Door Width | 36" (2 or 3 Hinges) |
| Minimum Order Quantity | 1 |
| Mounting Type | Wall Mounted |
| Plate Type | Full Back Plate |
| Product Height | 3-15/16" |
| Product Width | 2-5/16" |
| Profile | Square |
| Ship Via | Ships UPS |
| Warnings | Not for use with Laminated Glass |
| Warranty | 15 - Year Warranty |
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
