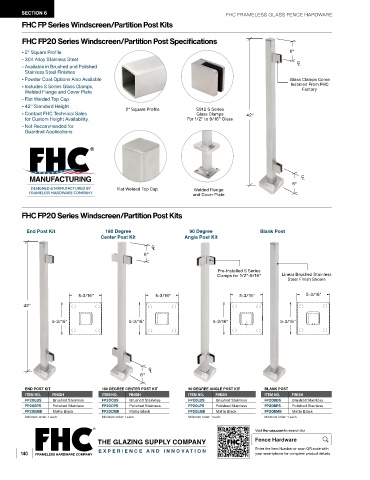

Page 142 - FGR26-Frameless-Glass-Railing

SECTION 6 FHC FRAMELESS GLASS FENCE HARDWARE
FHC FP Series Windscreen/Partition Post Kits

FHC FP20 Series Windscreen/Partition Post Specifications

- 2" Square Profile 6"
- 304 Alloy Stainless Steel C

- Available in Brushed and Polished L
Stainless Steel Finishes
- Powder Coat Options Also Available Glass Clamps Come
- Includes S Series Glass Clamps, Installed From FHC
Welded Flange and Cover Plate Factory
- Flat Welded Top Cap
- 42" Standard Height 2" Square Profile S912 S Series
- Contact FHC Technical Sales Glass Clamps 42"
for Custom Height Availability. For 1/2" to 9/16" Glass
- Not Recommended for
Guardrail Applications

C L
6"
Flat Welded Top Cap Welded Flange
and Cover Plate

FHC FP20 Series Windscreen/Partition Post Kits

End Post Kit 180 Degree 90 Degree Blank Post
Center Post Kit Angle Post Kit
C L
6"

Pre-Installed S Series
Clamps for 1/2"-9/16" Linear Brushed Stainless
Steel Finish Shown

5-3/16" 5-3/16" 5-3/16" 5-3/16"
42"

5-3/16" 5-3/16" 5-3/16" 5-3/16"

C L
6"

END POST KIT 180 DEGREE CENTER POST KIT 90 DEGREE ANGLE POST KIT BLANK POST
ITEM NO. FINISH ITEM NO. FINISH ITEM NO. FINISH ITEM NO. FINISH
FP20EBS Brushed Stainless FP20CBS Brushed Stainless FP20LBS Brushed Stainless FP20BBS Brushed Stainless
FP20EPS Polished Stainless FP20CPS Polished Stainless FP20LPS Polished Stainless FP20BPS Polished Stainless
XX Denotes Finish.
FP20EMB Matte Black FP20CMB Matte Black FP20LMB Matte Black FP20BMB Matte Black
Minimum order: 1 each. Minimum order: 1 each. Minimum order: 1 each. Minimum order: 1 each.
Visit fhc-usa.com to search for
Fence Hardware
THE GLAZING SUPPLY COMPANY
Enter the Item Number or scan QR code with
140 EXPERIENCE AND INNOV A TION your smartphone for complete product details
