FHC GLASS GATE SYSTEMS AND HARDWARE SECTION 7
FHC Glass Gate Systems

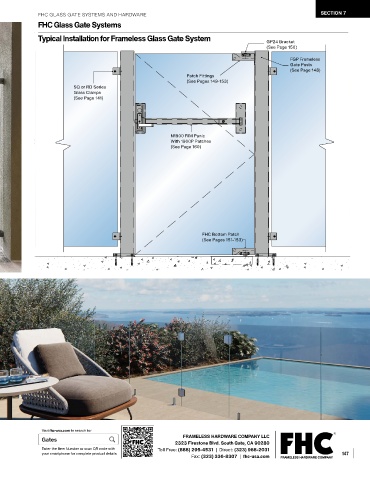

Typical Installation for Frameless Glass Gate System GP24 Bracket
(See Page 150)

FGP Frameless
Gate Posts
(See Page 148)
Patch Fittings
(See Pages 149-153)
SQ or RD Series
Glass Clamps
(See Page 141)

N1900 RIM Panic
With 1900P Patches
(See Page 160)

FHC Bottom Patch
(See Pages 151-153)
