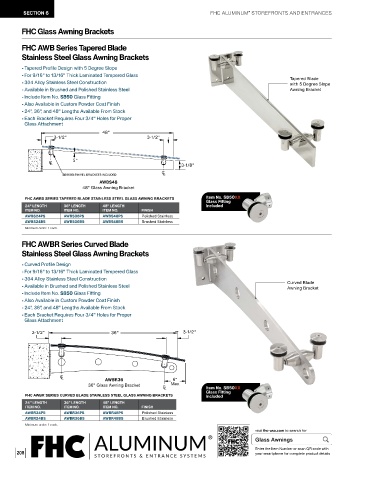

Page 210 - FAL24R Storefronts and Entrances

SECTION 6 24˝ FHC ALUMINUM STOREFRONTS AND ENTRANCES
®
3-1/2˝ 3-1/2˝
Ø9/16˝
FHC Glass Awning Brackets 6˝
C L
C L 5° 3-7/16˝ 6˝ 3-1/4˝
FHC AWB Series Tapered Blade C L
C L
SB50BS SWIVEL BRACKETS INCLUDED
Stainless Steel Glass Awning Brackets C L C L
AWBS24-24˝ GLASS AWNING BRACKET
3-1/4˝
- Tapered Profile Design with 5 Degree Slope AWBS24 MOUNTING PLATE DETAIL
36˝
- For 9/16" to 13/16" Thick Laminated Tempered Glass Tapered Blade
3-1/2˝
3-1/2˝
- 304 Alloy Stainless Steel Construction Ø9/16˝ 6˝ with 5 Degree Slope
- Available in Brushed and Polished Stainless Steel 3-3/8˝ C L Awning Bracket
- Include Item No. SB50 Glass Fitting 7˝ 4-3/8˝
5°
C L
- Also Available in Custom Powder Coat Finish C L
- 24", 36", and 48" Lengths Available From Stock C L MAX
6˝
SB50BS SWIVEL BRACKETS INCLUDED
AWBS36-36˝ GLASS AWNING BRACKET
- Each Bracket Requires Four 3/4" Holes for Proper C L C L
Glass Attachment 3-1/4˝
48˝
48" AWBS36 MOUNTING PLATE DETAIL
3-1/2˝
3-1/2˝ 3-1/2" Ø9/16˝
3-1/2"
6˝
C L
5°
5° 8˝ 6˝
C L C L
3-1/8"
3-3/8˝
C L
C L C L
SB50BS SWIVEL BRACKETS INCLUDED
AWBS48-48˝ GLASS AWNING BRACKET C L C L
AWBS48
48" Glass Awning Bracket 3-1/4˝
AWBS48 MOUNTING PLATE DETAIL
FHC AWBS SERIES TAPERED BLADE STAINLESS STEEL GLASS AWNING BRACKETS Item No. SB50XX
Glass Fitting
24" LENGTH 36" LENGTH 48" LENGTH Included
ITEM NO. ITEM NO. ITEM NO. FINISH
AWBS24PS AWBS36PS AWBS48PS Polished Stainless
AWBS24BS AWBS36BS AWBS48BS Brushed Stainless
Minimum order: 1 each.
FHC AWBR Series Curved Blade
Stainless Steel Glass Awning Brackets
- Curved Profile Design
- For 9/16" to 13/16" Thick Laminated Tempered Glass
- 304 Alloy Stainless Steel Construction
- Available in Brushed and Polished Stainless Steel Curved Blade
Awning Bracket
- Include Item No. SB50 Glass Fitting
- Also Available in Custom Powder Coat Finish
- 24", 36", and 48" Lengths Available From Stock
- Each Bracket Requires Four 3/4" Holes for Proper
Glass Attachment
3-1/2" 36" 3-1/2"

C L
AWBR36 6"
36" Glass Awning Bracket C L Max Item No. SB50XX
Glass Fitting
FHC AWBR SERIES CURVED BLADE STAINLESS STEEL GLASS AWNING BRACKETS Included
24" LENGTH 36" LENGTH 48" LENGTH
ITEM NO. ITEM NO. ITEM NO. FINISH
AWBR24PS AWBR36PS AWBR48PS Polished Stainless
AWBR24BS AWBR36BS AWBR48BS Brushed Stainless
Minimum order: 1 each.
