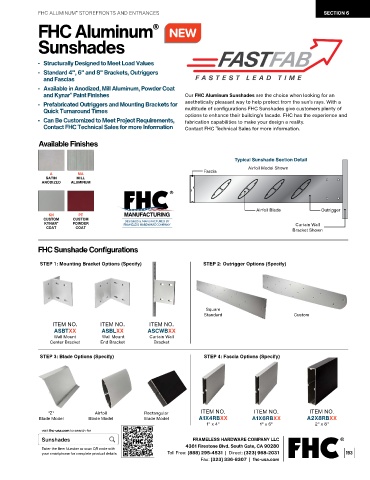

Page 193 - FAL24 Storefronts and Entrances

FHC ALUMINUM STOREFRONTS AND ENTRANCES SECTION 6
®
FHC Aluminum
®
Sunshades

- Structurally Designed to Meet Load Values
- Standard 4", 6" and 8" Brackets, Outriggers
and Fascias
- Available in Anodized, Mill Aluminum, Powder Coat
and Kynar Paint Finishes Our FHC Aluminum Sunshades are the choice when looking for an
®
- Prefabricated Outriggers and Mounting Brackets for aesthetically pleasant way to help protect from the sun’s rays. With a
Quick Turnaround Times multitude of configurations FHC Sunshades give customers plenty of
options to enhance their building’s facade. FHC has the experience and
- Can Be Customized to Meet Project Requirements, fabrication capabilities to make your design a reality.
Contact FHC Technical Sales for more Information Contact FHC Technical Sales for more information.

Available Finishes

Typical Sunshade Section Detail
Airfoil Model Shown
Fascia
A MA
SATIN MILL
ANODIZED ALUMINUM

Airfoil Blade Outrigger
KN PT
CUSTOM CUSTOM DESIGNED & MANUFACTURED BY
KYNAR ® POWDER FRAMELESS HARDWARE COMPANY Curtain Wall
COAT COAT Bracket Shown

FHC Sunshade Configurations

STEP 1: Mounting Bracket Options (Specify) STEP 2: Outrigger Options (Specify)

Square
Standard Custom
ITEM NO. ITEM NO. ITEM NO.
ASBTXX ASBLXX ASCWBXX
Wall Mount Wall Mount Curtain Wall
Center Bracket End Bracket Bracket

STEP 3: Blade Options (Specify) STEP 4: Fascia Options (Specify)

"Z" Airfoil Rectangular ITEM NO. ITEM NO. ITEM NO.
Blade Model Blade Model Blade Model A1X4RBXX A1X6RBXX A2X8RBXX
1" x 4" 1" x 6" 2" x 8"
visit fhc-usa.com to search for
Sunshades FRAMELESS HARDWARE COMPANY LLC
4361 Firestone Blvd. South Gate, CA 90280
Enter the Item Number or scan QR code with
your smartphone for complete product details Toll Free: (888) 295-4531 | Direct: (323) 968-2031 193
Fax: (323) 336-8307 | fhc-usa.com
