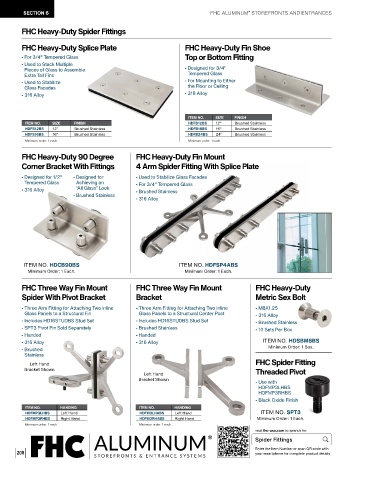

Page 208 - FAL24 Storefronts and Entrances

SECTION 6 FHC ALUMINUM STOREFRONTS AND ENTRANCES
®
FHC Heavy-Duty Spider Fittings

FHC Heavy-Duty Splice Plate FHC Heavy-Duty Fin Shoe
- For 3/4" Tempered Glass Top or Bottom Fitting
- Used to Stack Multiple
Pieces of Glass to Assemble - Designed for 3/4"
Extra Tall Fins Tempered Glass
- Used to Stabilize - For Mounting to Either
Glass Facades the Floor or Ceiling
- 316 Alloy - 316 Alloy

ITEM NO. SIZE FINISH
ITEM NO. SIZE FINISH HDFB12BS 12" Brushed Stainless
HDFS12BS 12” Brushed Stainless HDFB16BS 16" Brushed Stainless
HDFS16BS 16” Brushed Stainless HDFB24BS 24" Brushed Stainless
Minimum order: 1 each. Minimum order: 1 each.
FHC Heavy-Duty 90 Degree FHC Heavy-Duty Fin Mount
Corner Bracket With Fittings 4 Arm Spider Fitting With Splice Plate

- Designed for 1/2" - Designed for - Used to Stabilize Glass Facades
Tempered Glass Achieving an - For 3/4" Tempered Glass
- 316 Alloy “All Glass” Look - Brushed Stainless
- Brushed Stainless
- 316 Alloy

ITEM NO. HDCB90BS ITEM NO. HDFSP4ABS
Minimum Order: 1 Each. Minimum Order: 1 Each.

FHC Three Way Fin Mount FHC Three Way Fin Mount FHC Heavy-Duty
Spider With Pivot Bracket Bracket Metric Sex Bolt

- Three Arm Fitting for Attaching Two Inline - Three Arm Fitting for Attaching Two Inline - M8X1.25
Glass Panels to a Structural Fin Glass Panels to a Structural Center Post - 316 Alloy
- Includes HD16STUDBS Stud Set - Includes HD16STUDBS Stud Set - Brushed Stainless
- SPT3 Pivot Pin Sold Separately - Brushed Stainless - 10 Sets Per Box
- Handed - Handed
- 316 Alloy - 316 Alloy ITEM NO. HDSBM8BS
- Brushed Minimum Order: 1 Box.
Stainless
Left Hand FHC Spider Fitting
Bracket Shown Threaded Pivot
Left Hand
Bracket Shown - Use with
HDFMP3LHBS
HDFMP3RHBS
- Black Oxide Finish
ITEM NO. HANDING ITEM NO. HANDING
HDFMP3LHBS Left Hand HDFM3LHABS Left Hand ITEM NO. SPT3
HDFMP3RHBS Right Hand HDFM3RHABS Right Hand Minimum Order: 1 Each.
Minimum order: 1 each. Minimum order: 1 each.
visit fhc-usa.com to search for
Spider Fittings
Enter the Item Number or scan QR code with
208 your smartphone for complete product details
