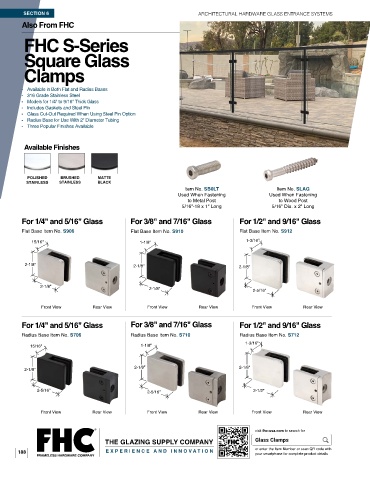

Page 194 - FAH23R Architectural Hardware Catalog

SECTION 6 ARCHITECTURAL HARDWARE GLASS ENTRANCE SYSTEMS

Also From FHC

FHC S-Series

Square Glass

Clamps

- Available in Both Flat and Radius Bases
- 316 Grade Stainless Steel
- Models for 1/4" to 9/16" Thick Glass
- Includes Gaskets and Steel Pin
- Glass Cut-Out Required When Using Steel Pin Option
- Radius Base for Use With 2" Diameter Tubing
- Three Popular Finishes Available

Available Finishes

POLISHED BRUSHED MATTE
STAINLESS STAINLESS BLACK
Item No. SB0LT Item No. SLAG
Used When Fastening Used When Fastening
to Metal Post to Wood Post
5/16"-18 x 1" Long 5/16" Dia. x 2" Long

For 1/4" and 5/16" Glass For 3/8" and 7/16" Glass For 1/2" and 9/16" Glass
Flat Base Item No. S906 Flat Base Item No. S910 Flat Base Item No. S912
1-3/16"
15/16" 1-1/8"

2-1/8" 2-1/8" 2-1/8"

2-1/8"
2-1/8" 2-5/16"

Front View Rear View Front View Rear View Front View Rear View

For 1/4" and 5/16" Glass For 3/8" and 7/16" Glass For 1/2" and 9/16" Glass

Radius Base Item No. S706 Radius Base Item No. S710 Radius Base Item No. S712
1-3/16"
15/16" 1-1/8"

2-1/8" 2-1/8"
2-1/8"

2-5/16" 2-1/2"
2-5/16"

Front View Rear View Front View Rear View Front View Rear View

visit fhc-usa.com to search for
Glass Clamps
THE GLAZING SUPPLY COMPANY
or enter the Item Number or scan QR code with
188 EXPERIENCE AND INNOV A TION your smartphone for complete product details

4361 Firestone Blvd. South Gate, CA 90280
Toll Free: (888) 295-4531 | Direct: (323) 968-2031
Fax: (323) 336-8307 | fhc-usa.com
