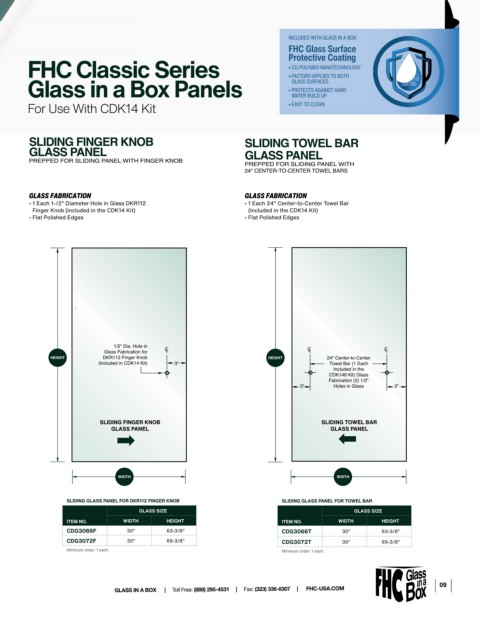

INCLUDED WITH GLASS IN A BOX:
FHC Glass Surface
Protective Coating
FHC Classic Series • CO-POLYMER NANOTECHNOLOGY

• FACTORY-APPLIED TO BOTH
GLASS SURFACES
Glass in a Box Panels • PROTECTS AGAINST HARD
WATER BUILD UP
For Use With CDK14 Kit • EASY TO CLEAN

SLIDING FINGER KNOB SLIDING TOWEL BAR
GLASS PANEL GLASS PANEL
PREPPED FOR SLIDING PANEL WITH FINGER KNOB
PREPPED FOR SLIDING PANEL WITH
24" CENTER-TO-CENTER TOWEL BARS

GLASS FABRICATION GLASS FABRICATION
• 1 Each 1-/2" Diameter Hole in Glass DKR112 • 1 Each 24" Center-to-Center Towel Bar
Finger Knob (included in the CDK14 Kit) (Included in the CDK14 Kit)
• Flat Polished Edges • Flat Polished Edges

1/2" Dia. Hole in
C L C L C L
Glass Fabrication for
HEIGHT DKR112 Finger Knob HEIGHT 24" Center-to-Center
(Included in CDK14 Kit) 3" Towel Bar (1 Each
Included in the
CDK148 Kit) Glass
Fabrication (2) 1/2"
3" Holes in Glass 3"

SLIDING FINGER KNOB SLIDING TOWEL BAR
GLASS PANEL GLASS PANEL

WIDTH WIDTH

SLIDING GLASS PANEL FOR DKR112 FINGER KNOB SLIDING GLASS PANEL FOR TOWEL BAR
GLASS SIZE GLASS SIZE
ITEM NO. WIDTH HEIGHT ITEM NO. WIDTH HEIGHT
CDG3066F 30" 63-3/8" CDG3066T 30" 63-3/8"
CDG3072F 30" 69-3/8" CDG3072T 30" 69-3/8"
Minimum order: 1 each. Minimum order: 1 each.

09
