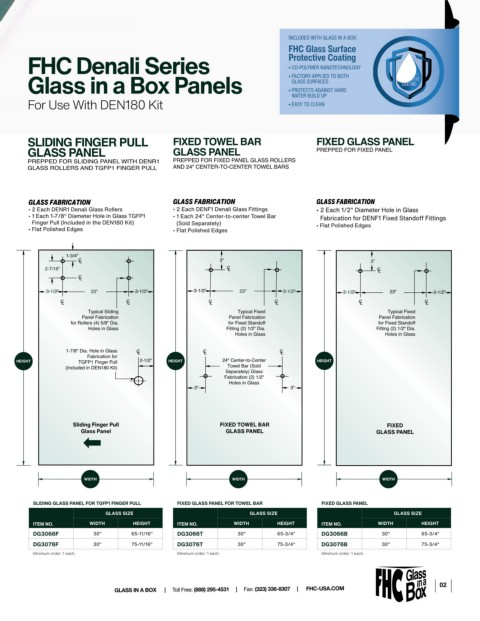

Page 3 - Glass In A Box

INCLUDED WITH GLASS IN A BOX:
FHC Glass Surface
FHC Denali Series Protective Coating
• CO-POLYMER NANOTECHNOLOGY
Glass in a Box Panels • FACTORY-APPLIED TO BOTH
GLASS SURFACES
• PROTECTS AGAINST HARD
WATER BUILD UP
For Use With DEN180 Kit • EASY TO CLEAN

SLIDING FINGER PULL FIXED TOWEL BAR FIXED GLASS PANEL
GLASS PANEL GLASS PANEL PREPPED FOR FIXED PANEL
PREPPED FOR SLIDING PANEL WITH DENR1 PREPPED FOR FIXED PANEL GLASS ROLLERS
GLASS ROLLERS AND TGFP1 FINGER PULL AND 24" CENTER-TO-CENTER TOWEL BARS

GLASS FABRICATION GLASS FABRICATION GLASS FABRICATION
• 2 Each DENR1 Denali Glass Rollers • 2 Each DENF1 Denali Glass Fittings • 2 Each 1/2" Diameter Hole in Glass
• 1 Each 1-7/8" Diameter Hole in Glass TGFP1 • 1 Each 24" Center-to-center Towel Bar Fabrication for DENF1 Fixed Standoff Fittings
Finger Pull (Included in the DEN180 Kit) (Sold Separately) • Flat Polished Edges
• Flat Polished Edges • Flat Polished Edges

1-3/4"
C L 3" 3"
2-7/16" C L C L
C L
3-1/2" 23" 3-1/2" 3-1/2" 23" 3-1/2" 3-1/2" 23" 3-1/2"
C L C L C L C L C L C L
Typical Sliding Typical Fixed Typical Fixed
Panel Fabrication Panel Fabrication Panel Fabrication
for Rollers (4) 5/8" Dia. for Fixed Standoff for Fixed Standoff
Holes in Glass Fitting (2) 1/2" Dia. Fitting (2) 1/2" Dia.
Holes in Glass Holes in Glass

1-7/8" Dia. Hole in Glass C L C L C L
Fabrication for
HEIGHT TGFP1 Finger Pull 2-1/2" HEIGHT 24" Center-to-Center HEIGHT
(Included in DEN180 Kit) Towel Bar (Sold
Separately) Glass
Fabrication (2) 1/2"
Holes in Glass
3" 3"

Sliding Finger Pull FIXED TOWEL BAR FIXED
Glass Panel GLASS PANEL GLASS PANEL

WIDTH WIDTH WIDTH

SLIDING GLASS PANEL FOR TGFP1 FINGER PULL FIXED GLASS PANEL FOR TOWEL BAR FIXED GLASS PANEL
GLASS SIZE GLASS SIZE GLASS SIZE
ITEM NO. WIDTH HEIGHT ITEM NO. WIDTH HEIGHT ITEM NO. WIDTH HEIGHT
DG3066F 30" 65-11/16" DG3066T 30" 65-3/4" DG3066B 30" 65-3/4"
DG3076F 30" 75-11/16" DG3076T 30" 75-3/4" DG3076B 30" 75-3/4"
Minimum order: 1 each. Minimum order: 1 each. Minimum order: 1 each.

02
