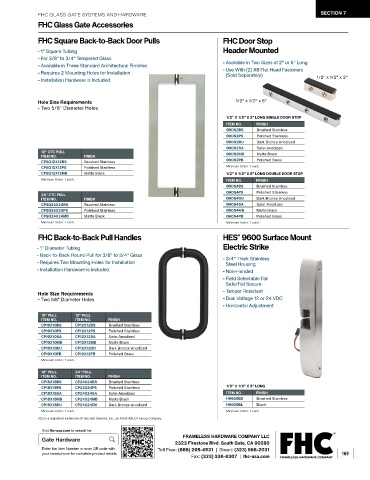

Page 167 - FGR26-Frameless-Glass-Railing

FHC GLASS GATE SYSTEMS AND HARDWARE SECTION 7
FHC Glass Gate Accessories

FHC Square Back-to-Back Door Pulls FHC Door Stop

- 1" Square Tubing Header Mounted
- For 3/8" to 3/4" Tempered Glass
- Available in Three Standard Architectural Finishes - Available in Two Sizes of 2" or 6" Long
- Requires 2 Mounting Holes for Installation - Use With (2) #8 Flat Head Fasteners
(Sold Separately)
- Installation Hardware is Included 1/2" x 1/2" x 2"

Hole Size Requirements 1/2" x 1/2" x 6"
• Two 5/8" Diameter Holes
1/2" X 1/2" X 2" LONG SINGLE DOOR STOP
ITEM NO. FINISH
0HDS2BS Brushed Stainless
0HDS2PS Polished Stainless
0HDS2DU Dark Bronze Anodized
0HDS2SA Satin Anodized
12" CTC PULL 0HDS2MB Matte Black
ITEM NO. FINISH
CPSQ12X12BS Brushed Stainless 0HDS2PB Polished Brass
CPSQ12X12PS Polished Stainless Minimum Order: 1 each.
CPSQ12X12MB Matte Black 1/2" X 1/2" X 6" LONG DOUBLE DOOR STOP
Minimum Order: 1 each. ITEM NO. FINISH
0HDS4BS Brushed Stainless
0HDS4PS Polished Stainless
24" CTC PULL
ITEM NO. FINISH 0HDS4DU Dark Bronze Anodized
CPSQ24X24BS Brushed Stainless 0HDS4SA Satin Anodized
CPSQ24X24PS Polished Stainless 0HDS4MB Matte Black
CPSQ24X24MB Matte Black 0HDS4PB Polished Brass
Minimum Order: 1 each. Minimum Order: 1 each.

FHC Back-to-Back Pull Handles HES 9600 Surface Mount
®
- 1" Diameter Tubing Electric Strike
- Back-to-Back Round Pull for 3/8" to 3/4" Glass - 3/4" Thick Stainless
- Requires Two Mounting Holes for Installation Steel Housing
- Installation Hardware is Included - Non-Handed
- Field Selectable Fail
Safe/Fail Secure
- Tamper Resistant
Hole Size Requirements
• Two 5/8" Diameter Holes - Dual Voltage 12 or 24 VDC
- Horizontal Adjustment
10" PULL 12" PULL
ITEM NO. ITEM NO. FINISH
CP10X10BS CP12X12BS Brushed Stainless
CP10X10PS CP12X12PS Polished Stainless
CP10X10SA CP12X12SA Satin Anodized
CP10X10MB CP12X12MB Matte Black
CP10X10DU CP12X12DU Dark Bronze Anodized
CP10X10PB CP12X12PB Polished Brass
Minimum Order: 1 each.
18" PULL 24" PULL
ITEM NO. ITEM NO. FINISH
CP18X18BS CP24X24BS Brushed Stainless
CP18X18PS CP24X24PS Polished Stainless 1/2" X 1/2" X 2" LONG
CP18X18SA CP24X24SA Satin Anodized ITEM NO. FINISH
CP18X18MB CP24X24MB Matte Black H9600BS Brushed Stainless
CP18X18DU CP24X24DU Dark Bronze Anodized H9600BL Black
Minimum Order: 1 each. Minimum Order: 1 each.
HES is a registered trademark of Henchett Systems, Inc., an ASSA ABLOY Group Company
Visit fhc-usa.com to search for
Gate Hardware FRAMELESS HARDWARE COMPANY LLC
2323 Firestone Blvd. South Gate, CA 90280
Enter the Item Number or scan QR code with Toll Free: (888) 295-4531 | Direct: (323) 968-2031
your smartphone for complete product details 165
Fax: (323) 336-8307 | fhc-usa.com
