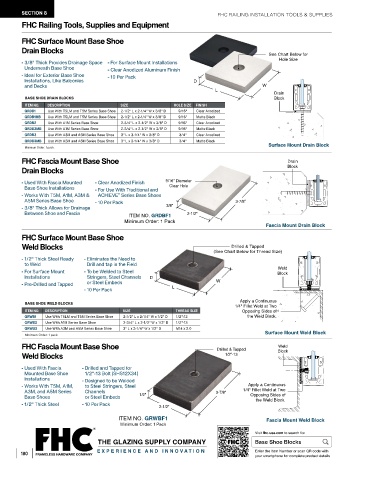

Page 182 - FGR26-Frameless-Glass-Railing

SECTION 8 FHC RAILING INSTALLATION TOOLS & SUPPLIES
FHC Railing Tools, Supplies and Equipment

FHC Surface Mount Base Shoe
Drain Blocks
See Chart Below for
- 3/8" Thick Provides Drainage Space For Surface Mount Installations Hole Size
-
Underneath Base Shoe - Clear Anodized Aluminum Finish
- Ideal for Exterior Base Shoe - 10 Per Pack
Installations, Like Balconies D
and Decks W
L
Drain
BASE SHOE DRAIN BLOCKS Block
ITEM NO. DESCRIPTION SIZE HOLE SIZE FINISH
GRDB1 Use With T5LM and T5M Series Base Shoe 2-1/2" L x 2-1/4" W x 3/8" D 9/16" Clear Anodized
GRDB1MB Use With T5LM and T5M Series Base Shoe 2-1/2" L x 2-1/4" W x 3/8" D 9/16" Matte Black
GRDB2 Use With A1M Series Base Shoe 2-3/4" L x 2-1/2" W x 3/8" D 9/16" Clear Anodized
GRDB2MB Use With A1M Series Base Shoe 2-3/4" L x 2-1/2" W x 3/8" D 9/16" Matte Black
GRDB3 Use With A3M and A5M Series Base Shoe 3" L x 3-1/4" W x 3/8" D 3/4" Clear Anodized
GRDB3MB Use With A3M and A5M Series Base Shoe 3" L x 3-1/4" W x 3/8" D 3/4" Matte Black
Minimum Order: 1 pack. Surface Mount Drain Block
FHC Fascia Mount Base Shoe Drain
Drain Blocks Block

- Used With Fascia Mounted - Clear Anodized Finish 9/16" Diameter
Base Shoe Installations - For Use With Traditional and Clear Hole
- Works With T5M, A1M, A3M & ACHIEVE Series Base Shoes
®
A5M Series Base Shoe - 10 Per Pack 3-7/8"
- 3/8" Thick Allows for Drainage 3/8"
Between Shoe and Fascia ITEM NO. GRDBF1 2-1/2"
Minimum Order: 1 Pack
Fascia Mount Drain Block
FHC Surface Mount Base Shoe
Weld Blocks Drilled & Tapped
(See Chart Below for Thread Size)
- 1/2" Thick Steel Ready - Eliminates the Need to
to Weld Drill and tap in the Field
Weld
- For Surface Mount - To be Welded to Steel Block
Installations Stringers, Steel Channels D
- Pre-Drilled and Tapped or Steel Embeds W
- 10 Per Pack L

Apply a Continuous
BASE SHOE WELD BLOCKS
1/4" Fillet Weld at Two
ITEM NO. DESCRIPTION SIZE THREAD SIZE Opposing Sides of
GRWB1 Use With T5LM and T5M Series Base Shoe 2-1/2" L x 2-1/4" W x 1/2" D 1/2"-13 the Weld Block.
GRWB2 Use With A1M Series Base Shoe 2-3/4" L x 2-1/2" W x 1/2" D 1/2"-13
GRWB3 Use With A3M and A5M Series Base Shoe 3" L x 3-1/4" W x 1/2" D M14 x 2.0
Minimum Order: 1 pack. Surface Mount Weld Block
FHC Fascia Mount Base Shoe Drilled & Tapped Weld
Weld Blocks 1/2"-13 Block

- Used With Fascia - Drilled and Tapped for
Mounted Base Shoe 1/2"-13 Bolt (SHS12X34)
Installations - Designed to be Welded
- Works With T5M, A1M, to Steel Stringers, Steel Apply a Continuous
A3M, and A5M Series Channels 3-7/8" 1/4" Fillet Weld at Two
Base Shoes or Steel Embeds 1/2" Opposing Sides of
- 1/2" Thick Steel - 10 Per Pack the Weld Block.
2-1/2"
ITEM NO. GRWBF1 Fascia Mount Weld Block
Minimum Order: 1 Pack
