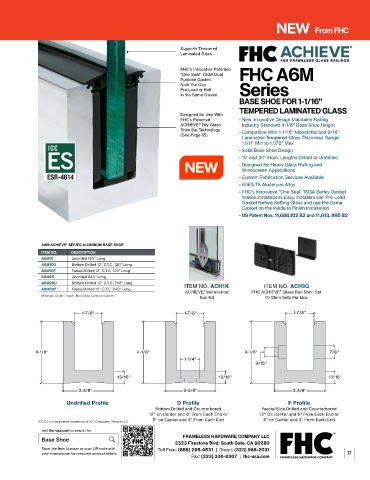

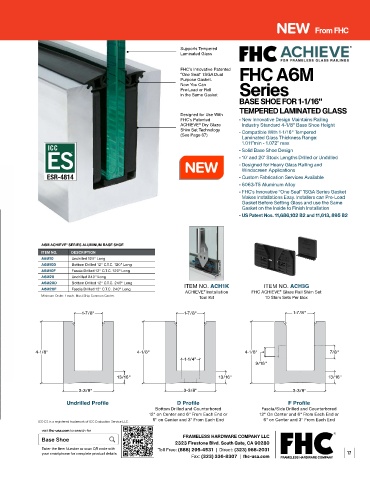

ARCHITECTURAL RAILING SYSTEMS SECTION 1

FHC ACHIEVE FGR Frameless Glass Railing System From FHC
®

Supports Tempered
Laminated Glass

FHC’s Innovative Patented
“One Seal” 1SGA Dual FHC A6M
Purpose Gasket.
Now You Can
Pre-Load or Roll Series
in the Same Gasket
BASE SHOE FOR 1-1/16"
TEMPERED LAMINATED GLASS
Designed for Use With
FHC’s Patented - New Innovative Design Maintains Railing
ACHIEVE Dry Glaze Industry Standard 4-1/8" Base Shoe Height
®
Shim Set Technology - Compatible With 1-1/16" Monolithic and 9/16"
(See Page 85)
Laminated Tempered Glass Thickness Range:
1.011" Min to 1.072" Max
- Solid Base Shoe Design
- 10' and 20' Stock Lengths Drilled or Undrilled

- Designed for Heavy Glass Railing and
Windscreen Applications
- Custom Fabrication Services Available
- 6063-T5 Aluminum Alloy
- FHC’s Innovative “One Seal” 1SGA Series Gasket
Makes Installations Easy. Installers can Pre-Load
Gasket Before Setting Glass and use the Same
Gasket on the Inside to Finish Installation
- US Patent Nos. 11,686,102 B2 and 11,613, 895 B2

A6M ACHIEVE ® SERIES ALUMINUM BASE SHOE
ITEM NO. DESCRIPTION
A6M10 Undrilled 120" Long
A6M10D Bottom Drilled 12" C.T.C. 120" Long
A6M10F Fascia Drilled 12" C.T.C. 120" Long
A6M20 Undrilled 240" Long
A6M20D Bottom Drilled 12" C.T.C. 240" Long ITEM NO. ACH1K ITEM NO. ACH3G
A6M20F Fascia Drilled 12" C.T.C. 240" Long ACHIEVE Installation FHC ACHIEVE Glass Rail Shim Set
®
®
Minimum Order: 1 each. Must Ship Common Carrier. Tool Kit 10 Shim Sets Per Box
1-7/8" 1-7/8" 1-7/8"

4-1/8" 4-1/8" 4-1/8" 7/8"
1-1/4"
9/16"

13/16" 13/16" 13/16"

3-3/8" 3-3/8" 3-3/8"
Undrilled Profile D Profile F Profile
Bottom Drilled and Counterbored Fascia/Side Drilled and Counterbored
12" on Center and 6" From Each End or 12" On Center and 6" From Each End or
6" on Center and 3" From Each End 6" on Center and 3" From Each End
