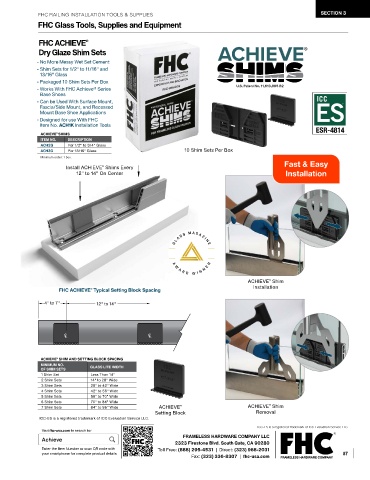

Page 89 - FHC-FARW26-Premium-Aluminum-Railing-Systems

FHC RAILING INSTALLATION TOOLS & SUPPLIES SECTION 3
FHC Glass Tools, Supplies and Equipment

FHC ACHIEVE
®
Dry Glaze Shim Sets
- No More Messy Wet Set Cement
- Shim Sets for 1/2" to 11/16" and
13/16" Glass
- Packaged 10 Shim Sets Per Box
- Works With FHC Achieve® Series U.S. Patent No. 11,613,895 B2
Base Shoes
- Can be Used With Surface Mount, ICC
Fascia/Side Mount, and Recessed
Mount Base Shoe Applications
- Designed for use With FHC
Item No. ACH1K Installation Tools
ESR-4814
ACHIEVE ® SHIMS
ITEM NO. DESCRIPTION
ACH2G For 1/2" to 3/4" Glass
ACH3G For 13/16" Glass 10 Shim Sets Per Box
Minimum order: 1 box.
Install ACHIEVE Shims Every Fast & Easy
®
12" to 14" On Center Installation

ACHIEVE Shim
®
Installation
FHC ACHIEVE Typical Setting Block Spacing
®
4" to 7" 12" to 14"

L C L C

ACHIEVE ® SHIM AND SETTING BLOCK SPACING
MINIMUM NO.
OF SHIM SETS GLASS LITE WIDTH
1 Shim Set Less Than 14"
2 Shim Sets 14" to 28" Wide
3 Shim Sets 28" to 42" Wide
4 Shim Sets 42" to 56" Wide
5 Shim Sets 56" to 70" Wide
6 Shim Sets 70" to 84" Wide
®
®
7 Shim Sets 84" to 96" Wide ACHIEVE ACHIEVE Shim
Setting Block Removal
