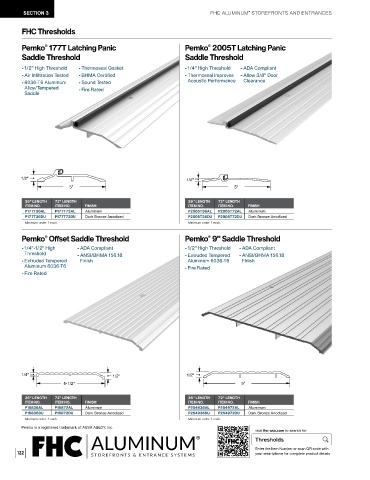

Page 124 - FAL24R Storefronts and Entrances

SECTION 3 FHC ALUMINUM STOREFRONTS AND ENTRANCES
®
FHC Thresholds

Pemko 177T Latching Panic Pemko 2005T Latching Panic
®
®
Saddle Threshold Saddle Threshold
- 1/2" High Threshold - Thermoseal Gasket - 1/4" High Threshold - ADA Compliant
- Air Infiltration Tested - BHMA Certified - Thermoseal Improves - Allow 3/8" Door
- 6036-T6 Aluminum - Sound Tested Acoustic Performance Clearance
Alloy/Tempered - Fire Rated
Saddle

1/2" 1/4"
5" 5"

36" LENGTH 72" LENGTH 36" LENGTH 72" LENGTH
ITEM NO. ITEM NO. FINISH ITEM NO. ITEM NO. FINISH
P177T36AL P177T72AL Aluminum P2005T36AL P2005T72AL Aluminum
P177T36DU P177T72DU Dark Bronze Anodized P2005T36DU P2005T72DU Dark Bronze Anodized
Minimum order: 1 each. Minimum order: 1 each.
Pemko Offset Saddle Threshold Pemko 9" Saddle Threshold
®
®
- 1/4"-1/2" High - ADA Compliant - 1/2" High Threshold - ADA Compliant
Threshold - ANSI/BHMA 156.18 - Extruded Tempered - ANSI/BHMA 156.18
- Extruded Tempered Finish Aluminum 6036-T6 Finish
Aluminum 6036-T6 - Fire Rated
- Fire Rated

1/4" 1/2" 1/2"
5-1/2" 9"

36" LENGTH 72" LENGTH 36" LENGTH 72" LENGTH
ITEM NO. ITEM NO. FINISH ITEM NO. ITEM NO. FINISH
P15836AL P15872AL Aluminum P254936AL P254972AL Aluminum
P15836DU P15872DU Dark Bronze Anodized P254936DU P254972DU Dark Bronze Anodized
Minimum order: 1 each. Minimum order: 1 each.
Pemko is a registered trademark of ASSA ABLOY, Inc.
visit fhc-usa.com to search for
Thresholds
Enter the Item Number or scan QR code with
122 your smartphone for complete product details
