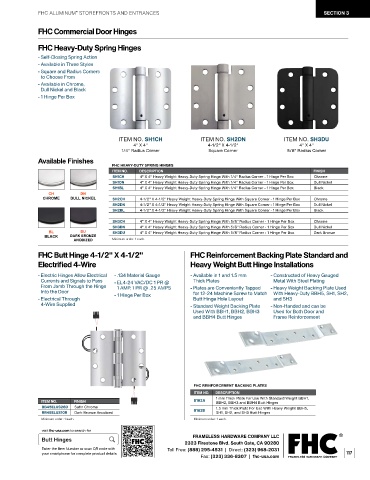

Page 119 - FAL24R Storefronts and Entrances
P. 119

FHC ALUMINUM  STOREFRONTS AND ENTRANCES                                                       SECTION 3
                          ®
              FHC Commercial Door Hinges


              FHC Heavy-Duty Spring Hinges
                - Self-Closing Spring Action
                - Available in Three Styles
                -  Square and Radius Corners
               to Choose From
                -  Available in Chrome,
               Dull Nickel and Black
                - 1 Hinge Per Box







                                        ITEM NO. SH1CH             ITEM NO. SH2DN              ITEM NO. SH3DU
                                             4" X 4"                  4-1/2" X 4-1/2"               4" X 4"
                                         1/4" Radius Corner           Square Corner             5/8" Radius Corner
              Available Finishes
                                      FHC HEAVY-DUTY SPRING HINGES
                                      ITEM NO.  DESCRIPTION                                              FINISH
                                      SH1CH    4" X 4" Heavy Weight Heavy-Duty Spring Hinge With 1/4" Radius Corner - 1 Hinge Per Box  Chrome
                                      SH1DN    4" X 4" Heavy Weight Heavy-Duty Spring Hinge With 1/4" Radius Corner - 1 Hinge Per Box  Dull Nickel
                                      SH1BL    4" X 4" Heavy Weight Heavy-Duty Spring Hinge With 1/4" Radius Corner - 1 Hinge Per Box  Black
                 CH         DN
               CHROME   DULL NICKEL   SH2CH    4-1/2" X 4-1/2" Heavy Weight Heavy-Duty Spring Hinge With Square Corner - 1 Hinge Per Box  Chrome
                                      SH2DN    4-1/2" X 4-1/2" Heavy Weight Heavy-Duty Spring Hinge With Square Corner - 1 Hinge Per Box  Dull Nickel
                                      SH2BL    4-1/2" X 4-1/2" Heavy Weight Heavy-Duty Spring Hinge With Square Corner - 1 Hinge Per Box  Black
                                      SH3CH    4" X 4" Heavy Weight Heavy-Duty Spring Hinge With 5/8" Radius Corner - 1 Hinge Per Box  Chrome
                                      SH3DN    4" X 4" Heavy Weight Heavy-Duty Spring Hinge With 5/8" Radius Corner - 1 Hinge Per Box  Dull Nickel
                 BL         DU        SH3DU    4" X 4" Heavy Weight Heavy-Duty Spring Hinge With 5/8" Radius Corner - 1 Hinge Per Box  Dark Bronze
                BLACK   DARK BRONZE
                         ANODIZED     Minimum order: 1 each.

              FHC Butt Hinge 4-1/2" X 4-1/2"                    FHC Reinforcement Backing Plate Standard and
              Electrified 4-Wire                                Heavy Weight Butt Hinge Installations
                -  Electric Hinges Allow Electrical    - .134 Material Gauge    -  Available in 1 and 1.5 mm      -  Constructed of Heavy Gauged
                 Currents and Signals to Pass    -  EL4-24 VAC/DC 1 PR @    Thick Plates   Metal With Steel Plating
                 From Jamb Through the Hinge  1 AMP, 1 PR @ .25 AMPS    -  Plates are Conveniently Tapped     -  Heavy Weight Backing Plate Used
                 Into the Door                                   for 12-24 Machine Screw to Match  With Heavy-Duty BBH5, SH1, SH2,
                -  Electrical Through     - 1 Hinge Per Box      Butt Hinge Hole Layout    and SH3
               4-Wire Supplied                                    -  Standard Weight Backing Plate     -  Non-Handed and can be
                                                                 Used With BBH1, BBH2, BBH3   Used for Both Door and
                                                                 and BBH4 Butt Hinges      Frame Reinforcement












                                                                 FHC REINFORCEMENT BACKING PLATES
                                                                 ITEM NO.  DESCRIPTION
                                                                        1 mm Thick Plate For Use With Standard Weight BBH1,
               ITEM NO.   FINISH                                 8162A  BBH2, BBH3 and BBH4 Butt Hinges
               BB45ELUS26D  Satin Chrome                                1.5 mm Thick Plate For Use With Heavy Weight BBH5,
               BB45ELUS10B  Dark Bronze Anodized                 8162B  SH1, SH2, and SH3 Butt Hinges
               Minimum order: 1 each.                            Minimum order: 1 each.
               visit fhc-usa.com to search for
               Butt Hinges                                       FRAMELESS HARDWARE COMPANY LLC
                                                              2323 Firestone Blvd. South Gate, CA 90280
               Enter the Item Number or scan QR code with    Toll Free: (888) 295-4531  |  Direct: (323) 968-2031
               your smartphone for complete product details                                                         117
                                                                   Fax: (323) 336-8307  |  fhc-usa.com
