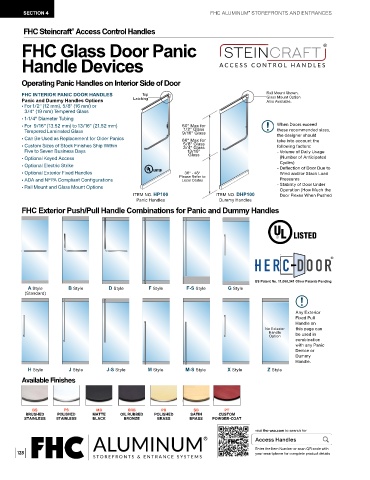

Page 130 - FAL24R Storefronts and Entrances

SECTION 4 FHC ALUMINUM STOREFRONTS AND ENTRANCES
®
FHC Steincraft Access Control Handles U.S. Patent Nos. 11,060,341 and 11,187,323
®
FHC Glass Door Panic

Handle Devices A C CESS C ON TR OL HANDLES

Operating Panic Handles on Interior Side of Door

FHC INTERIOR PANIC DOOR HANDLES Top Rail Mount Shown.
Glass Mount Option
Panic and Dummy Handles Options Latching Also Available.
• For 1/2" (12 mm), 5/8" (16 mm) or
3/4" (19 mm) Tempered Glass
• 1-1/4" Diameter Tubing
• For 9/16" (13.52 mm) to 13/16" (21.52 mm) 60" Max for When Doors exceed
1/2" Glass
Tempered Laminated Glass 9/16" Glass these recommended sizes,
• Can Be Used as Replacement for Older Panics 66" Max for the designer should
take into account the
• Custom Sizes of Stock Finishes Ship Within 5/8" Glass following factors:
3/4" Glass
Five to Seven Business Days 13/16" - Volume of Daily Usage
• Optional Keyed Access Glass (Number of Anticipated
Cycles)
• Optional Electric Strike - Deflection of Door Due to
• Optional Exterior Fixed Handles 36" - 48" Wind and/or Stack Load
• ADA and NFPA Compliant Configurations Please Refer to Pressures
Local Codes
• Rail Mount and Glass Mount Options - Stability of Door Under
Operation (How Much the
ITEM NO. HP100 ITEM NO. DHP100 Door Flexes When Pushed
Panic Handles Dummy Handles
FHC Exterior Push/Pull Handle Combinations for Panic and Dummy Handles

US Patent No. 11,060,341 Other Patents Pending
A Style B Style D Style F Style F-S Style G Style
(Standard)

Any Exterior
Fixed Pull
Handle on
No Exterior this page can
Handle be used in
Option
combination
with any Panic
Device or
Dummy
Handle.
H Style J Style J-S Style M Style M-S Style X Style Z Style
Available Finishes

BS PS MB 0RB PB SB PT
BRUSHED POLISHED MATTE OIL RUBBED POLISHED SATIN CUSTOM
STAINLESS STAINLESS BLACK BRONZE BRASS BRASS POWDER-COAT
visit fhc-usa.com to search for
Access Handles
Enter the Item Number or scan QR code with
128 your smartphone for complete product details
