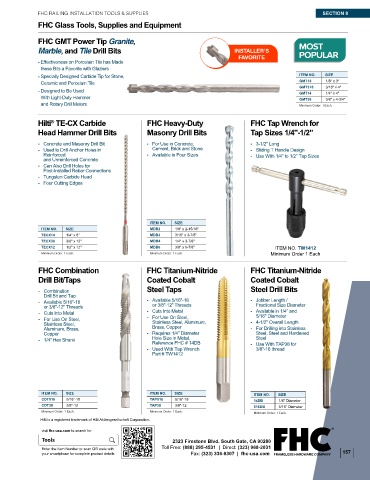

Page 171 - FHC FGR24R Architectural Railing Systems

FHC RAILING INSTALLATION TOOLS & SUPPLIES SECTION 8
FHC Glass Tools, Supplies and Equipment

FHC GMT Power Tip Granite,
Marble, and Tile Drill Bits INSTALLER'S

FAVORITE
- Effectiveness on Porcelain Tile has Made
these Bits a Favorite with Glaziers
- Specially Designed Carbide Tip for Stone, ITEM NO. SIZE
Ceramic and Porcelain Tile GMT18 1/8" x 3"
- Designed to Be Used GMT316 3/16" x 4"
1/4" x 4"
GMT14
With Light-Duty Hammer GMT38 3/8" x 4-3/4"
and Rotary Drill Motors Minimum Order: 1 Each.
Hilti TE-CX Carbide FHC Heavy-Duty FHC Tap Wrench for
®
Head Hammer Drill Bits Masonry Drill Bits Tap Sizes 1/4"-1/2"

- Concrete and Masonry Drill Bit - For Use in Concrete, - 3-1/2" Long
- Used to Drill Anchor Holes in Cement, Brick and Stone - Sliding T Handle Design
Reinforced - Available in Four Sizes - Use With 1/4" to 1/2" Tap Sizes
and Unreinforced Concrete
- Can Also Drill Holes for
Post-Installed Rebar Connections
- Tungsten Carbide Head
- Four Cutting Edges

ITEM NO. SIZE
ITEM NO. SIZE MDB2 1/8" x 2-15/16"
TECX14 1/4" x 8" MDB3 3/16" x 3-7/8"
TECX38 3/8" x 12" MDB4 1/4" x 3-7/8"
TECX12 1/2" x 12" MDB6 3/8" x 5-7/8" ITEM NO. TW1412
Minimum Order 1 Each
Minimum Order: 1 Each. Minimum Order: 1 Each.
FHC Combination FHC Titanium-Nitride FHC Titanium-Nitride
Drill Bit/Taps Coated Cobalt Coated Cobalt
- Combination Steel Taps Steel Drill Bits
Drill Bit and Tap
- Available 5/16"-18 - Available 5/16"-18 - Jobber Length /
or 3/8"-12" Threads or 3/8"-12" Threads Fractional Size Diameter
- Cuts Into Metal - Cuts Into Metal - Available in 1/4" and
5/16" Diameter
- For Use On Steel, - For Use On Steel,
Stainless Steel, Stainless Steel, Aluminum, - 4-1/2" Overall Length
Aluminum, Brass, Brass, Copper - For Drilling into Stainless
Copper - Requires 1/4" Diameter Steel, Steel and Hardened
Steel
- 1/4" Hex Shank Hole Size in Metal, - Use With TAP38 for
Reference FHC # 14DB
- Used With Tap Wrench 3/8"-16 thread
Part # TW1412

ITEM NO. SIZE ITEM NO. SIZE ITEM NO. SIZE
CDT516 5/16"-18 TAP516 5/16"-18 14DB 1/4" Diameter
CDT38 3/8"-12 TAP38 3/8"-12 516DB 5/16" Diameter
Minimum Order: 1 Each. Minimum Order: 1 Each. Minimum Order: 1 Each.
Hilti is a registered trademark of Hilti Aktiengesellschaft Corporation.
visit fhc-usa.com to search for
Tools 2323 Firestone Blvd. South Gate, CA 90280
Enter the Item Number or scan QR code with Toll Free: (888) 295-4531 | Direct: (323) 968-2031 157
your smartphone for complete product details Fax: (323) 336-8307 | fhc-usa.com
