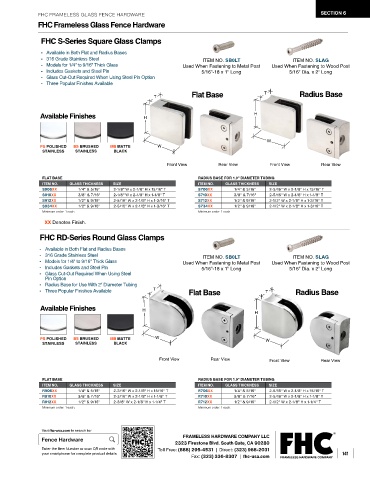

Page 143 - FGR26-Frameless-Glass-Railing

FHC FRAMELESS GLASS FENCE HARDWARE SECTION 6
FHC Frameless Glass Fence Hardware

FHC S-Series Square Glass Clamps
- Available in Both Flat and Radius Bases
- 316 Grade Stainless Steel ITEM NO. SB0LT ITEM NO. SLAG
- Models for 1/4" to 9/16" Thick Glass Used When Fastening to Metal Post Used When Fastening to Wood Post
- Includes Gaskets and Steel Pin 5/16"-18 x 1" Long 5/16" Dia. x 2" Long
- Glass Cut-Out Required When Using Steel Pin Option
- Three Popular Finishes Available
Flat Base T Radius Base
T

Available Finishes H H

W
PS POLISHED BS BRUSHED MB MATTE W
STAINLESS STAINLESS BLACK

Front View Rear View Front View Rear View
FLAT BASE RADIUS BASE FOR 1.9" DIAMETER TUBING
ITEM NO. GLASS THICKNESS SIZE ITEM NO. GLASS THICKNESS SIZE
S906XX 1/4" & 5/16" 2-1/8" W x 2-1/8" H x 15/16" T S706XX 1/4" & 5/16" 2-5/16" W x 2-1/8" H x 15/16" T
S910XX 3/8" & 7/16" 2-1/8" W x 2-1/8" H x 1-1/8" T S710XX 3/8" & 7/16" 2-5/16" W x 2-1/8" H x 1-1/8" T
S912XX 1/2" & 9/16" 2-5/16" W x 2-1/8" H x 1-3/16" T S712XX 1/2" & 9/16" 2-1/2" W x 2-1/8" H x 1-3/16" T
S934XX 1/2" & 9/16" 2-5/16" W x 2-1/8" H x 1-3/16" T S734XX 1/2" & 9/16" 2-1/2" W x 2-1/8" H x 1-3/16" T
Minimum order: 1 each. Minimum order: 1 each.

XX Denotes Finish.
FHC RD-Series Round Glass Clamps

- Available in Both Flat and Radius Bases
- 316 Grade Stainless Steel ITEM NO. SB0LT ITEM NO. SLAG
- Models for 1/4" to 9/16" Thick Glass Used When Fastening to Metal Post Used When Fastening to Wood Post
- Includes Gaskets and Steel Pin 5/16"-18 x 1" Long 5/16" Dia. x 2" Long
- Glass Cut-Out Required When Using Steel
Pin Option
- Radius Base for Use With 2" Diameter Tubing
T
- Three Popular Finishes Available Flat Base T Radius Base

Available Finishes H
H

PS POLISHED BS BRUSHED MB MATTE W W
STAINLESS STAINLESS BLACK

Front View Rear View Front View Rear View

FLAT BASE RADIUS BASE FOR 1.9" DIAMETER TUBING
ITEM NO. GLASS THICKNESS SIZE ITEM NO. GLASS THICKNESS SIZE
R906XX 1/4" & 5/16" 2-3/16" W x 2-1/8" H x 15/16" T R706XX 1/4" & 5/16" 2-5/16" W x 2-1/8" H x 15/16" T
R910XX 3/8" & 7/16" 2-3/16" W x 2-1/8" H x 1-1/8" T R710XX 3/8" & 7/16" 2-5/16" W x 2-1/8" H x 1-1/8" T
R912XX 1/2" & 9/16" 2-3/8" W x 2-1/8" H x 1-1/4" T R712XX 1/2" & 9/16" 2-1/2" W x 2-1/8" H x 1-1/4" T
Minimum order: 1 each. Minimum order: 1 each.

Visit fhc-usa.com to search for
Fence Hardware FRAMELESS HARDWARE COMPANY LLC
2323 Firestone Blvd. South Gate, CA 90280
Enter the Item Number or scan QR code with Toll Free: (888) 295-4531 | Direct: (323) 968-2031
your smartphone for complete product details 141
Fax: (323) 336-8307 | fhc-usa.com
