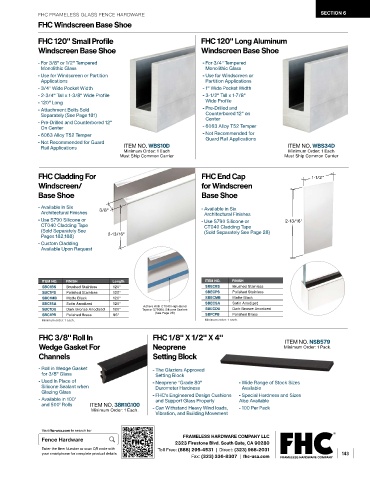

Page 145 - FGR26-Frameless-Glass-Railing

FHC FRAMELESS GLASS FENCE HARDWARE SECTION 6
FHC Windscreen Base Shoe

FHC 120" Small Profile FHC 120" Long Aluminum
Windscreen Base Shoe Windscreen Base Shoe

- For 3/8" or 1/2" Tempered - For 3/4" Tempered
Monolithic Glass Monolithic Glass
- Use for Windscreen or Partition - Use for Windscreen or
Applications Partition Applications
- 3/4" Wide Pocket Width - 1" Wide Pocket Width
- 2-3/4" Tall x 1-3/8" Wide Profile - 3-1/2" Tall x 1-7/8"
- 120" Long Wide Profile
- Attachment Bolts Sold - Pre-Drilled and
Separately (See Page 181) Counterbored 12" on
- Pre-Drilled and Counterbored 12" Center
On Center - 6063 Alloy T52 Temper
- 6063 Alloy T52 Temper - Not Recommended for
Guard Rail Applications
- Not Recommended for Guard
Rail Applications ITEM NO. WBS10D ITEM NO. WBS34D
Minimum Order: 1 Each
Minimum Order: 1 Each
Must Ship Common Carrier Must Ship Common Carrier
FHC Cladding For FHC End Cap 1-1/2"
Windscreen/ for Windscreen
Base Shoe Base Shoe

- Available in Six - Available in Six
Architectural Finishes 3/8" Architectural Finishes
- Use S790 Silicone or - Use S790 Silicone or 2-13/16"
CT040 Cladding Tape CT040 Cladding Tape
(Sold Separately See (Sold Separately See Page 28)
Pages 182,188) 2-13/16"
- Custom Cladding
Available Upon Request

ITEM NO. FINISH Length ITEM NO. FINISH
SBC1BS Brushed Stainless 120" SBECBS Brushed Stainless
SBC1PS Polished Stainless 120" SBECPS Polished Stainless
SBC1MB Matte Black 120" SBECMB Matte Black
SBC1SA Satin Anodized 120" Adhere With CT040 High-Bond SBECSA Satin Anodized
SBC1DU Dark Bronze Anodized 120" Tape or S790BL Silicone Sealant SBECDU Dark Bronze Anodized
SBC1PB Polished Brass 96" (See Page 28) SBFCPB Polished Brass
Minimum order: 1 each.. Minimum order: 1 each.
FHC 3/8" Roll In FHC 1/8" X 1/2" X 4" ITEM NO. NSB579
Wedge Gasket For Neoprene Minimum Order: 1 Pack.
Channels Setting Block

- Roll in Wedge Gasket - The Glaziers Approved
for 3/8" Glass Setting Block
- Used In Place of - Neoprene "Grade 80" - Wide Range of Stock Sizes
Silicone Sealant when Durometer Hardness Available
Glazing Glass - FHC's Engineered Design Cushions - Special Hardness and Sizes
- Available in 100' and Support Glass Properly Also Available
and 500' Rolls ITEM NO. 38R1G100
Minimum Order: 1 Each. - Can Withstand Heavy Wind loads, - 100 Per Pack
Vibration, and Building Movement
