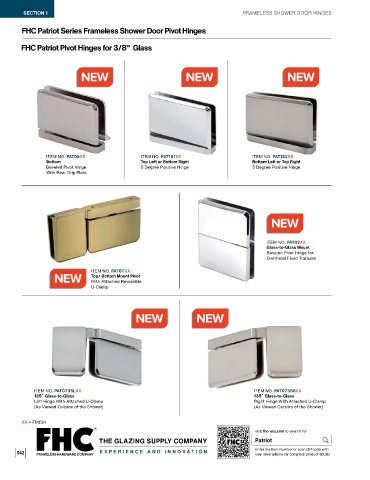

Page 44 - FSH24R Frameless Shower Door Hardware and Supplies

SECTION 1
SECTION 1 FRAMELESS SHOWER DOOR HINGES
FHC Patriot Series Frameless Shower Door Pivot Hinges

FHC Patriot Pivot Hinges for 3/8" Glass

ITEM NO. PAT08XX ITEM NO. PAT151XX ITEM NO. PAT152XX
Bottom Top Left or Bottom Right Bottom Left or Top Right
Beveled Pivot Hinge 5 Degree Positive Hinge 5 Degree Positive Hinge
With Rear Drip Plate

ITEM NO. PAT02XX
Glass-to-Glass Mount
Beveled Pivot Hinge for
Overhead Fixed Transom
ITEM NO. PAT07XX
Top/ Bottom Mount Pivot
With Attached Reversible
U-Clamp

ITEM NO. PAT0735LXX ITEM NO. PAT0735RXX
135˚ Glass-to-Glass 135˚ Glass-to-Glass
Left Hinge With Attached U-Clamp Right Hinge With Attached U-Clamp
(As Viewed Outside of the Shower) (As Viewed Outside of the Shower)

XX = FINISH
visit fhc-usa.com to search for
THE GLAZING SUPPLY COMPANY Patriot

042 EXPERIENCE A ND INNO V A TION Enter the Item Number or scan QR code with
your smartphone for complete product details
