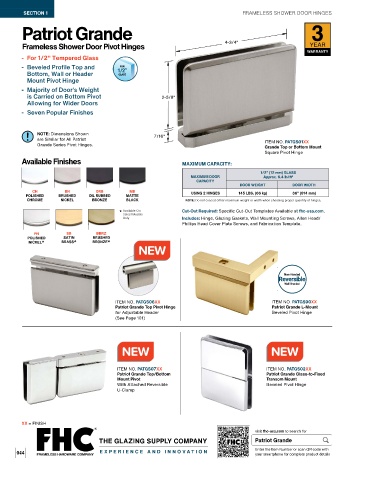

Page 46 - FSH24R Frameless Shower Door Hardware and Supplies

SECTION 1 FRAMELESS SHOWER DOOR HINGES
SECTION 1
Patriot Grande

Frameless Shower Door Pivot Hinges 4-3/4"

- For 1/2" Tempered Glass
- Beveled Profile Top and 1/2”
FOR
FOR
3/8”
Bottom, Wall or Header GLASS
GLASS
Mount Pivot Hinge
- Majority of Door's Weight
is Carried on Bottom Pivot 2-5/8"
Allowing for Wider Doors
- Seven Popular Finishes

NOTE: Dimensions Shown 7/16"
are Similar for All Patriot ITEM NO. PATGS01XX
Grande Series Pivot Hinges.
Grande Top or Bottom Mount
Square Pivot Hinge
Available Finishes MAXIMUM CAPACITY:

1/2" (12 mm) GLASS
MAXIMUM DOOR Approx. 6.4 lb/ft 2
CAPACITY
DOOR WEIGHT DOOR WIDTH
CH BN 0RB MB USING 2 HINGES 145 LBS. (66 kg) 36" (914 mm)
POLISHED BRUSHED OIL RUBBED MATTE
CHROME NICKEL BRONZE BLACK NOTE: Do not exceed either maximum weight or width when choosing proper quantity of hinges.
Available On Cut-Out Required: Specific Cut-Out Templates Available at fhc-usa.com.
*
Select Models
Only Includes: Hinge, Glazing Gaskets, Wall Mounting Screws, Allen Head/
Phillips Head Cover Plate Screws, and Fabrication Template.
PN SB BBRZ
POLISHED SATIN BRUSHED
NICKEL* BRASS* BRONZE*

Non-Handed
Reversible
Wall Bracket

ITEM NO. PATGS06XX ITEM NO. PATGS90XX
Patriot Grande Top Pivot Hinge Patriot Grande L-Mount
for Adjustable Header Beveled Pivot Hinge
(See Page 101)

ITEM NO. PATGS07XX ITEM NO. PATGS02XX
Patriot Grande Top/Bottom Patriot Grande Glass-to-Fixed
Mount Pivot Transom Mount
With Attached Reversible Beveled Pivot Hinge
U-Clamp

XX = FINISH
visit fhc-usa.com to search for
THE GLAZING SUPPLY COMPANY Patriot Grande

044 EXPERIENCE A ND INNO V A TION Enter the Item Number or scan QR code with
your smartphone for complete product details
