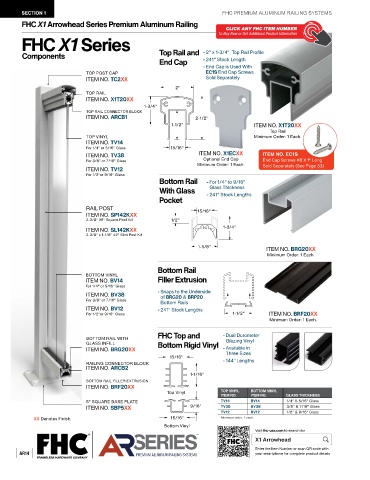

Page 24 - WEB-AR Aluminum Railing System

SECTION 1 FHC PREMIUM ALUMINUM RAILING SYSTEMS
FHC X1 Arrowhead Series Premium Aluminum Railing

FHC X1 Series

Components Top Rail and - 2" x 1-3/4" Top Rail Profile
End Cap - 241" Stock Length
- End Cap is Used With
TOP POST CAP EC1S End Cap Screws
ITEM NO. TC2XX Sold Separately
2"
TOP RAIL
ITEM NO. X1T20XX
1-3/4"
TOP RAIL CONNECTOR BLOCK
ITEM NO. ARCB1 2-1/2"
1-1/2" ITEM NO. X1T20XX
Top Rail
TOP VINYL Minimum Order: 1 Each.
ITEM NO. TV14
For 1/4" or 5/16" Glass 15/16"
ITEM NO. TV38 ITEM NO. X1ECXX ITEM NO. EC1S
Optional End Cap
For 3/8" or 7/16" Glass Minimum Order: 1 Each. End Cap Screws #8 X 1" Long
ITEM NO. TV12 Sold Separately (See Page 33)
For 1/2"or 9/16" Glass
Bottom Rail - For 1/4" to 9/16"
Glass Thickness
With Glass - 241" Stock Lengths
Pocket
RAIL POST 15/16"
ITEM NO. SP142KXX
2-3/8" 36" Square Post Kit 1/2"
ITEM NO. SL142KXX 1-3/4"
2-3/8" x 1-1/8" 42" Slim Post Kit
1-5/8" ITEM NO. BRG20XX
Minimum Order: 1 Each.

Bottom Rail
BOTTOM VINYL
ITEM NO. BV14 Filler Extrusion
For 1/4" or 5/16" Glass
- Snaps to the Underside
ITEM NO. BV38 of BRG20 & BRP20
For 3/8" or 7/16" Glass
Bottom Rails
ITEM NO. BV12 - 241" Stock Lengths
For 1/2"or 9/16" Glass 1-1/2" ITEM NO. BRF20XX
Minimum Order: 1 Each.

FHC Top and - Dual Durometer
BOTTOM RAIL WITH Glazing Vinyl
GLASS INFILL Bottom Rigid Vinyl
ITEM NO. BRG20XX - Available in
Three Sizes
15/16"
RAILING CONNECTOR BLOCK - 144" Lengths
ITEM NO. ARCB2
1-1/16"
BOTTOM RAIL FILLER EXTRUSION
ITEM NO. BRF20XX
Top Vinyl TOP VINYL BOTTOM VINYL
ITEM NO. ITEM NO. GLASS THICKNESS
5" SQUARE BASE PLATE TV14 BV14 1/4" & 5/16" Glass
ITEM NO. SBP5XX 9/16" TV38 BV38 3/8" & 7/16" Glass
TV12 BV12 1/2" & 9/16" Glass
XX Denotes Finish. 15/16" Minimum order: 1 each.
Bottom Vinyl
Visit fhc-usa.com to search for
X1 Arrowhead
Enter the Item Number or scan QR code with
AR14 PREMIUM ALUMINUM RAILING SYSTEMS your smartphone for complete product details
