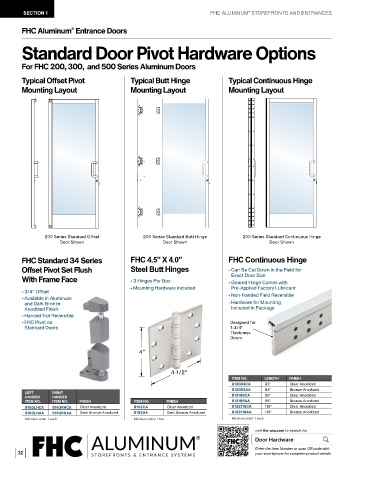

SECTION 1                                                     FHC ALUMINUM  STOREFRONTS AND ENTRANCES
                                                                                   ®
        FHC Aluminum  Entrance Doors
                         ®
        Standard Door Pivot Hardware Options



        For FHC 200, 300,  and 500 Series Aluminum Doors

        Typical Offset Pivot                Typical Butt Hinge               Typical Continuous Hinge
        Mounting Layout                     Mounting Layout                  Mounting Layout




























                200 Series Standard Offset      200 Series Standard Butt Hinge   200 Series Standard Continuous Hinge
                     Door Shown                        Door Shown                         Door Shown


        FHC Standard 34 Series              FHC 4.5" X 4.0"                  FHC Continuous Hinge
        Offset Pivot Set Flush              Steel Butt Hinges                  -  Can Be Cut Down in the Field for
                                                                             Exact Door Size
        With Frame Face                        - 3 Hinges Per Box              -  Geared Hinge Comes with
                                               -  Mounting Hardware Included  Pre-Applied Factory Lubricant
           -  3/4" Offset
           -  Available in Aluminum                                            - Non-Handed Field Reversible
         and Dark Bronze                                                       -  Hardware for Mounting
         Anodized Finish                                                     Included in Package
           - Handed Not Reversible
           -  FHC Pivot on                                                   Designed for
         Standard Doors                                                      1-3/4"
                                                                             Thickness
                                                                             Doors

                                               4"


                                                          4-1/2"
                                                                              ITEM NO.   LENGTH  FINISH
                                                                              813083CA   83"     Clear Anodized
                                                                              813083AA   83"     Bronze Anodized
         LEFT     RIGHT
         HANDED   HANDED                                                      813196CA   95"     Clear Anodized
         ITEM NO.  ITEM NO.  FINISH          ITEM NO.   FINISH                813196AA   95"     Bronze Anodized
         8163LHCA  8163RHCA  Clear Anodized  8152CA     Clear Anodized        8132119CA  119"    Clear Anodized
         8163LHAA  8163RHAA  Dark Bronze Anodized  8152AA  Dark Bronze Anodized  8132119AA  119"  Bronze Anodized
         Minimum order: 1 each.              Minimum order: 1 box.            Minimum order: 1 each.
                                                                                     visit fhc-usa.com to search for
                                                                                     Door Hardware
                                                                                     Enter the Item Number or scan QR code with
       32                                                                            your smartphone for complete product details
