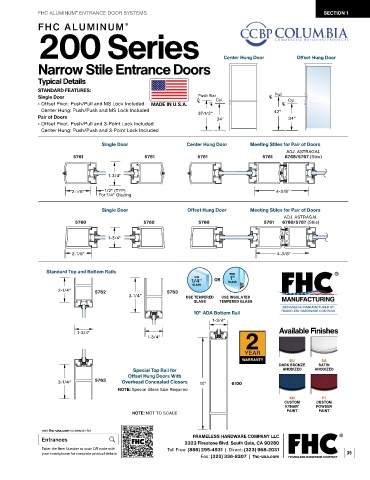

FHC ALUMINUM ENTRANCE DOOR SYSTEMS SECTION 1
®
FHC ALUMINUM
®
200 Series

Narrow Stile Entrance Doors Center Hung Door Offset Hung Door

Typical Details
STANDARD FEATURES:
Single Door Push Bar Cyl. C L Pull
• Offset Pivot: Push/Pull and MS Lock Included. C L C L C L Cyl.
Center Hung: Push/Push and MS Lock Included 42"
Pair of Doors 37-1/2" 34" 34"
• Offset Pivot: Push/Pull and 3-Point Lock Included.
Center Hung: Push/Push and 3-Point Lock Included

Single Door Center Hung Door Meeting Stiles for Pair of Doors
ADJ. ASTRAGAL
5761 5761 5761 5761 6768/5767 (Stile)

1-3/4"

2-1/8" 1/2" (TYP) 4-3/8"
For 1/4" Glazing

Single Door Offset Hung Door Meeting Stiles for Pair of Doors
ADJ. ASTRAGAL
5760 5760 5760 5761 6780/5767 (Stile)

1-3/4"

2-1/8" 4-3/8"

Standard Top and Bottom Rails FOR
FOR 1"
1/4" OR GLASS
GLASS
2-1/4" 5762 5763
3-1/4" USE TEMPERED USE INSULATED
GLASS TEMPERED GLASS
DESIGNED & MANUFACTURED BY
10" ADA Bottom Rail FRAMELESS HARDWARE COMPANY
1-3/4"

1-3/4" Available Finishes
1-3/4"

DU SA
DARK BRONZE SATIN
Special Top Rail for ANODIZED ANODIZED
Offset Hung Doors With
3-1/4" 5763 Overhead Concealed Closers 10" 6100
NOTE: Special Glass Size Required
KN PT
CUSTOM CUSTOM
KYNAR ® POWDER
NOTE: NOT TO SCALE PAINT PAINT

visit fhc-usa.com to search for
Entrances FRAMELESS HARDWARE COMPANY LLC
2323 Firestone Blvd. South Gate, CA 90280
Enter the Item Number or scan QR code with Toll Free: (888) 295-4531 | Direct: (323) 968-2031
your smartphone for complete product details 35
Fax: (323) 336-8307 | fhc-usa.com
