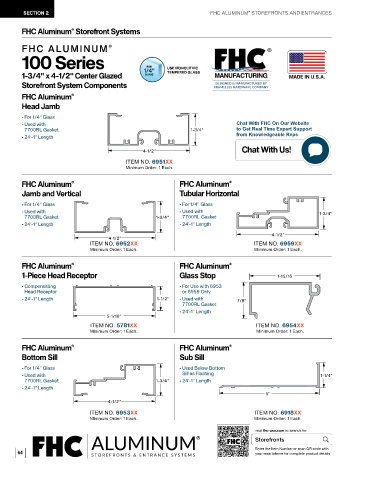

SECTION 2 FHC ALUMINUM STOREFRONTS AND ENTRANCES
®
FHC Aluminum Storefront Systems
®
FHC ALUMINUM
®
100 Series FOR USE MONOLITHIC

1-3/4" x 4-1/2" Center Glazed 1/4" TEMPERED GLASS
GLASS
Storefront System Components FRAMELESS HARDWARE COMPANY
DESIGNED & MANUFACTURED BY
FHC Aluminum
®
Head Jamb
- For 1/4" Glass
- Used with Chat With FHC On Our Website
7700RL Gasket 1-3/4" to Get Real Time Expert Support
- 24'-1" Length from Knowledgeable Reps
Chat With Us!
4-1/2"
ITEM NO. 6951XX
Minimum Order: 1 Each.

FHC Aluminum FHC Aluminum
®
®
Jamb and Vertical Tubular Horizontal
- For 1/4" Glass - For 1/4" Glass
- Used with - Used with 1-3/4"
7700RL Gasket 1-3/4" 7700RL Gasket
- 24'-1" Length - 24'-1" Length
4-1/2"
4-1/2"
ITEM NO. 6952XX ITEM NO. 6959XX
Minimum Order: 1 Each. Minimum Order: 1 Each.

FHC Aluminum FHC Aluminum
®
®
1-Piece Head Receptor Glass Stop 1-15/16
- Compensating - For Use with 6953
Head Receptor or 6959 Only
- 24'-1" Length 1-1/2" - Used with 7/8"
7700RL Gasket
- 24'-1" Length
5-1/16"
ITEM NO. 5781XX ITEM NO. 6954XX
Minimum Order: 1 Each. Minimum Order: 1 Each.

FHC Aluminum FHC Aluminum
®
®
Bottom Sill Sub Sill
- For 1/4" Glass - Used Below Bottom
- Used with Sill as Flashing 1-1/4"
7700RL Gasket 1-3/4" - 24'-1" Length
- 24'-1" Length
5"
4-1/2"
ITEM NO. 6953XX ITEM NO. 6918XX
Minimum Order: 1 Each. Minimum Order: 1 Each.
visit fhc-usa.com to search for
Storefronts
Enter the Item Number or scan QR code with
64 your smartphone for complete product details
