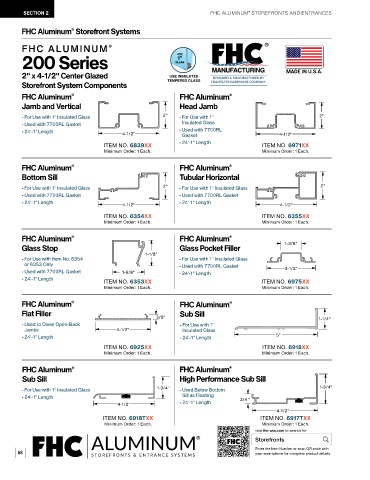

Page 70 - FAL24R Storefronts and Entrances

SECTION 2 FHC ALUMINUM STOREFRONTS AND ENTRANCES
®
FHC Aluminum Storefront Systems
®
FHC ALUMINUM
®
200 Series GLASS
FOR
1"
2" x 4-1/2" Center Glazed USE INSULATED DESIGNED & MANUFACTURED BY
Storefront System Components TEMPERED GLASS FRAMELESS HARDWARE COMPANY

FHC Aluminum FHC Aluminum
®
®
Jamb and Vertical Head Jamb
- For Use with 1" Insulated Glass 2" - For Use with 1" 2"
- Used with 7700RL Gasket Insulated Glass
- 24'-1" Length 4-1/2" - Used with 7700RL 4-1/2"
Gasket
- 24'-1" Length
ITEM NO. 6839XX ITEM NO. 6971XX
Minimum Order: 1 Each. Minimum Order: 1 Each.

FHC Aluminum FHC Aluminum
®
®
Bottom Sill Tubular Horizontal
- For Use with 1" Insulated Glass 2" - For Use with 1" Insulated Glass 2"
- Used with 7700RL Gasket - Used with 7700RL Gasket
- 24'-1" Length 4-1/2" - 24'-1" Length 4-1/2"

ITEM NO. 6354XX ITEM NO. 6355XX
Minimum Order: 1 Each. Minimum Order: 1 Each.

FHC Aluminum FHC Aluminum
®
®
Glass Stop Glass Pocket Filler 1-3/8"
1-1/8"
- For Use with Item No. 6354 - For Use with 1" Insulated Glass
or 6353 Only - Used with 7700RL Gasket
- Used with 7700RL Gasket 1-5/8" - 24'-1" Length 3-1/2"
- 24'-1" Length ITEM NO. 6353XX ITEM NO. 6975XX
Minimum Order: 1 Each. Minimum Order: 1 Each.

FHC Aluminum FHC Aluminum
®
®
Flat Filler 3/8" Sub Sill
- Used to Close Open-Back - For Use with 1" 1-1/4"
Jambs 4-1/2" Insulated Glass
- 24'-1" Length - 24'-1" Length 5"
ITEM NO. 6925XX ITEM NO. 6918XX
Minimum Order: 1 Each. Minimum Order: 1 Each.

FHC Aluminum FHC Aluminum
®
®
Sub Sill High Performance Sub Sill
- For Use with 1" Insulated Glass 1-3/4" - Used Below Bottom 1-3/4"
- 24'-1" Length Sill as Flashing 3/4 "
4-1/2" - 24'-1" Length
4-1/2"
ITEM NO. 6918TXX ITEM NO. 6917TXX
Minimum Order: 1 Each. Minimum Order: 1 Each.
visit fhc-usa.com to search for
Storefronts
Enter the Item Number or scan QR code with
68 your smartphone for complete product details
