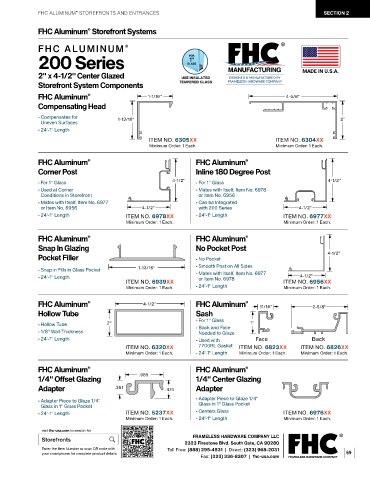

Page 71 - FAL24R Storefronts and Entrances

FHC ALUMINUM STOREFRONTS AND ENTRANCES SECTION 2
®
FHC Aluminum Storefront Systems
®
FHC ALUMINUM
®
200 Series GLASS
FOR
1"
2" x 4-1/2" Center Glazed USE INSULATED DESIGNED & MANUFACTURED BY
Storefront System Components TEMPERED GLASS FRAMELESS HARDWARE COMPANY

FHC Aluminum 1-1/16" 4-5/8"
®
Compensating Head
- Compensates for 1-13/16" 2"
Uneven Surfaces
- 24'-1" Length
ITEM NO. 6305XX ITEM NO. 6304XX
Minimum Order: 1 Each. Minimum Order: 1 Each.

FHC Aluminum FHC Aluminum
®
®
Corner Post Inline 180 Degree Post
- For 1" Glass 4-1/2" - For 1" Glass 4-1/2"
- Used at Corner - Mates with Itself, Item No. 6978
Conditions in Storefront or Item No. 6956
- Mates with Itself, Item No. 6977 - Can be Integrated
or Item No. 6956 4-1/2" with 200 Series 4-1/2"
- 24'-1" Length ITEM NO. 6978XX - 24'-1" Length ITEM NO. 6977XX
Minimum Order: 1 Each. Minimum Order: 1 Each.

FHC Aluminum FHC Aluminum
®
®
Snap In Glazing No Pocket Post
Pocket Filler - No Pocket 4-1/2"

- Snap in Fills in Glass Pocket 1-13/16" - Smooth Post on All Sides
- Mates with Itself, Item No. 6977
- 24'-1" Length or Item No. 6978 4-1/2"
ITEM NO. 6939XX ITEM NO. 6956XX
Minimum Order: 1 Each. - 24'-1" Length Minimum Order: 1 Each.

FHC Aluminum 4-1/2" FHC Aluminum 11/16" 2-5/8"
®
®
Hollow Tube Sash
- For 1" Glass
- Hollow Tube 2" - Back and Face 1"
- 1/8" Wall Thickness Needed to Glaze
- 24'-1" Length - Used with Face Back
ITEM NO. 6320XX 7700RL Gasket ITEM NO. 6823XX ITEM NO. 6826XX
Minimum Order: 1 Each. - 24'-1" Length Minimum Order: 1 Each. Minimum Order: 1 Each.

FHC Aluminum FHC Aluminum
®
®
1/4" Offset Glazing .985 1/4" Center Glazing
Adapter .361 .474 Adapter

- Adapter Piece to Glaze 1/4" - Adapter Piece to Glaze 1/4"
Glass in 1" Glass Pocket Glass in 1" Glass Pocket
- 24'-1" Length ITEM NO. 5237XX - Centers Glass ITEM NO. 6976XX
Minimum Order: 1 Each. - 24'-1" Length Minimum Order: 1 Each.
visit fhc-usa.com to search for
Storefronts FRAMELESS HARDWARE COMPANY LLC
2323 Firestone Blvd. South Gate, CA 90280
Enter the Item Number or scan QR code with Toll Free: (888) 295-4531 | Direct: (323) 968-2031
your smartphone for complete product details 69
Fax: (323) 336-8307 | fhc-usa.com
